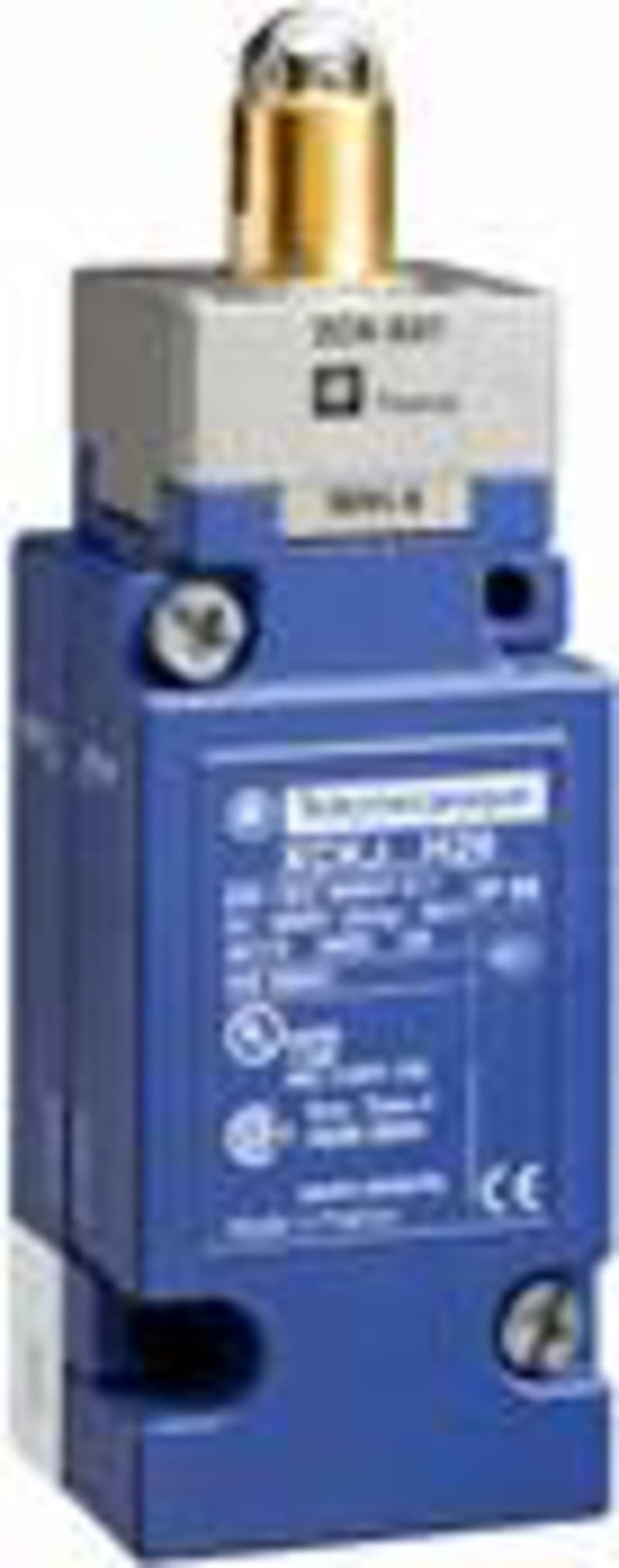

Telemecanique XCKJ1167 Limit Switch, Metal Roller Plunger
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XCKJ1167 limit switch (position switch), metal roller plunger actuator.
Technical Specifications
- Manufacturer part number (MPN)
- XCKJ1167
- EAN / GTIN
- 3666916056165
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 18 pcs
- Switching function
- Quick-break switch
- Rated operation current Ie at AC-15, 230 V
- 3 A
- Rated operation current Ie at DC-13, 230 V
- 0.27 A
- Housing material
- Metal
- Suitable for safety functions
- No
- With status indication
- No
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry PG
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Degree of protection (IP)
- IP66/IP67
- Forced opening
- Yes
- Type of control element
- Roller cam
- Type of interface
- None
- Output electronic
- No
- Rated operation current Ie at AC-15, 125 V
- 3 A
- Width sensor
- 40 mm
- Height of sensor
- 84 mm
- Length of sensor
- 36 mm
- Switching function latching
- No
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 1
- Number of contacts as change-over contact
- 1
- Alignment of the control element
- Roller cam straight
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916056165
- SAP 1000341572
- Code 81106383
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XMLP250MD71F Pressure Transmitter, 0.5–4.5 V ratiometric, G 1/4
Telemecanique
M18 bracket for low temperature
XXZB118
Telemecanique
Telemecanique XCSDMP701L01M12 Coded Magnetic Safety Switch, 1NC2NO, LED, M12 connector
Telemecanique
Telemecanique ZCDEN12 Cable Entry M16 × 1.5 for ZCD Limit Switch Bodies
Telemecanique
Telemecanique XMLG250D21 Pressure Transmitter, 0–250 bar, 4–20 mA
Telemecanique
Telemecanique ZCKE08 Operating Head for ZCK Limit Switches
Telemecanique

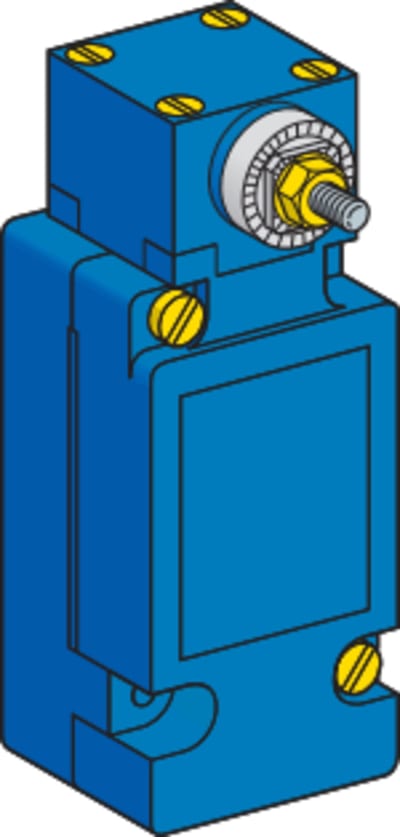

Telemecanique ZCKJ4104 Limit Switch
Telemecanique

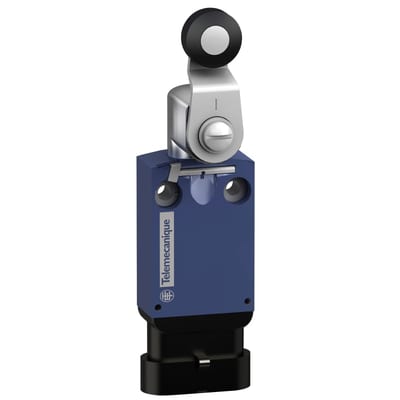

Limit switch with AMP connector (XCMD2115AM4)
