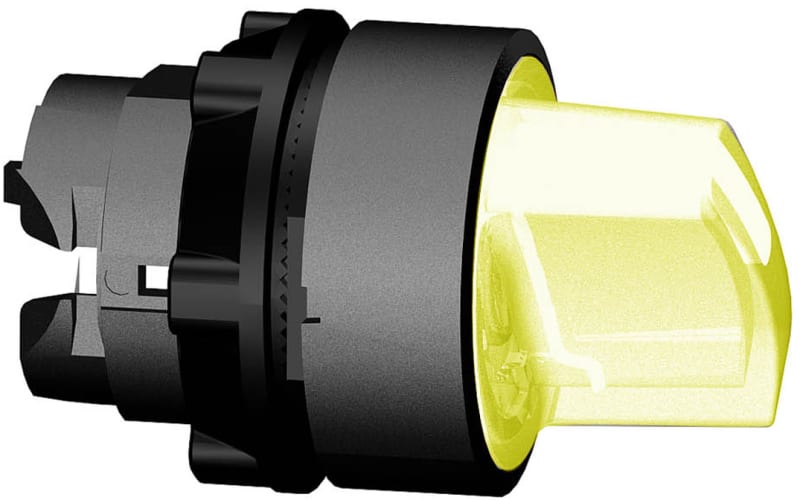

Telemecanique ZB5AK1453 Illuminated Pushbutton Head, Yellow, for LED Module, Harmony XB5 (plastic)
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique ZB5AK1453 illuminated pushbutton head, yellow, for LED lamp module, Harmony XB5 (plastic) Ø22 mm operators.
Technical Specifications
- Manufacturer part number (MPN)
- ZB5AK1453
- EAN / GTIN
- 3389110906189
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Range of product
- Harmony XB5
- Product or component type
- Head for illuminated selector switch
- Product compatibility
- Universal LED
- Device short name
- ZB5
- Bezel material
- Dark grey plastic
- Mounting diameter
- 22 mm
- Head type
- Standard
- Sale per indivisible quantity
- 1
- Shape of signaling unit head
- Round
- Type of operator
- Right to left spring return
- Operator profile
- Orange standard handle
- Operator position information
- 2 positions 90°
- CAD overall width
- 29 mm
- CAD overall height
- 29 mm
- CAD overall depth
- 43 mm
- Product weight
- 0.017 kg
- Mechanical durability
- 500000 cycles
- Station name
- XALD 1...5 cut-outs; XALK 2...5 cut-outs
- Electrical composition code
- M3 for <4 contacts using single blocks in front mounting with integral LED; M6 for <2 contacts using single blocks in front mounting with integral LED and transformer; M10 for <2 contacts using single blocks in front mounting with in
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3389110906189
- SAP 1000471518
- Code 8799506
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XMLP010BD21F Pressure Transmitter, 0.5–4.5 V ratiometric, G 1/4, M12 connector
Telemecanique
Telemecanique XCSDMR790L01M12 Coded Magnetic Safety Switch, Cylindrical M30, 2NO, M12 connector
Telemecanique
Telemecanique OsiSense XS608B1PAL2 Inductive Proximity Sensor — M8 barrel, Sn 2.5 mm, PNP, NO, pre-wired cable
Telemecanique
Telemecanique XZCC12FDP40B Field-Wireable Connector, M12, Female, Straight, 4-pin, Plastic
Telemecanique
Telemecanique OsiSense XS7J1A1PAL01M8 Inductive Proximity Sensor — 8 × 22 mm block, Sn 2.5 mm, PNP, NO, M8 connector
Telemecanique
Telemecanique XY2CZ611 Emergency Stop Rope Pull Switch
Telemecanique
Telemecanique voltage control relay RM17-U - range 20..80 V AC RM17UAS16
Telemecanique
Telemecanique XUSZMD031 Deflection Mirror for Safety Light Curtains, 400 mm
Technical guides
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy ZB5AK1453?
- ZB5AK1453 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is ZB5AK1453.
- What is the HS code for ZB5AK1453?
- The customs tariff (HS) code for ZB5AK1453 is 8538.90.
- Who manufactures ZB5AK1453?
- ZB5AK1453 is a Telemecanique product in the Control & Automation range.
- Is a datasheet available for ZB5AK1453?
- Yes — the ZB5AK1453 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for ZB5AK1453?
- The minimum order quantity is 1.
- Is ZB5AK1453 available?
- Yes — ZB5AK1453 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
