Telemecanique XCSDMP501L01M12 Coded Magnetic Safety Switch, 2NC1NO, LED, M12 connector
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique Preventa XCSDMP501L01M12 coded magnetic safety switch, 2NC1NO contacts, with LED indication, M12 connector; for position monitoring of guards and doors.
Technical Specifications
- Manufacturer part number (MPN)
- XCSDMP501L01M12
- EAN / GTIN
- 3666916059807
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 40 pcs
- IP rating
- IP66
- Type of actuation
- Magnet
- Type of electric connection
- Connector M12
- Type of switching output
- Relay contact
- Width sensor
- 25 mm
- Height of sensor
- 88 mm
- Length of sensor
- 13 mm
- Explosion safety category for gas
- None
- Construction type housing
- Cuboid
- Housing material
- Plastic
- Protected switch distance OFF
- 20 mm
- Protected switch distance ON
- 8 mm
- SIL according to IEC 61508
- 3
- Performance level according to EN ISO 13849-1
- Level e
- Max. output current at protected output
- 100 mA
- Mechanical mounting condition for sensor
- Not flat
- Min. output current
- 100 mA
- Voltage type
- AC/DC
- Cross-/short circuit identification possible
- Yes
- Switching distance
- 20 mm
- With monitoring function downstream switching devices
- No
- Suitable for safety functions
- Yes
- With status indication
- No
- Degree of protection (IP)
- IP67K
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916059807
- SAP 1000341540
- Code 81106368
Product Documentation
More from Telemecanique
Telemecanique
USB-M12 5P for XUSLM software
XZCRPC
Telemecanique

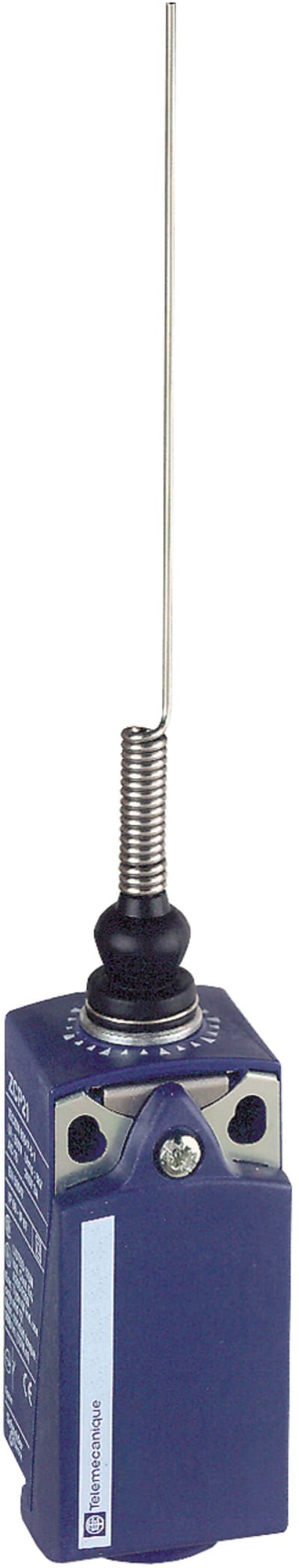

Telemecanique XCKP2106P16 Limit Switch, Cat's Whisker (Spring Rod), Plastic Body, M16 cable entry
Telemecanique

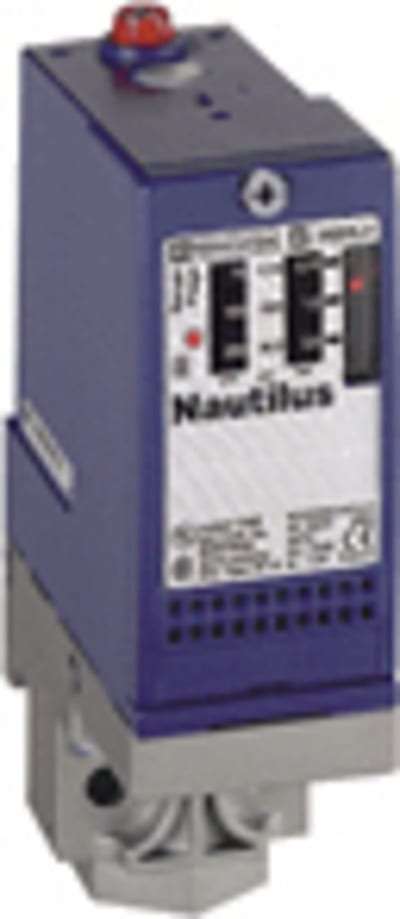

Telemecanique XMLA500N2S11 Pressure Switch, 30–500 bar
Telemecanique

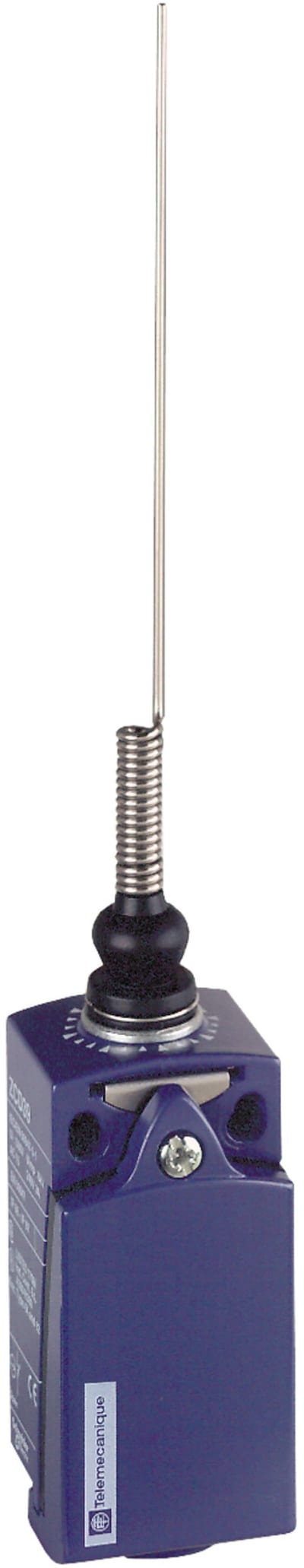

Telemecanique XCKD2106G11 Limit Switch, Cat's Whisker (Spring Rod), Metal Body, PG11 cable entry
Telemecanique

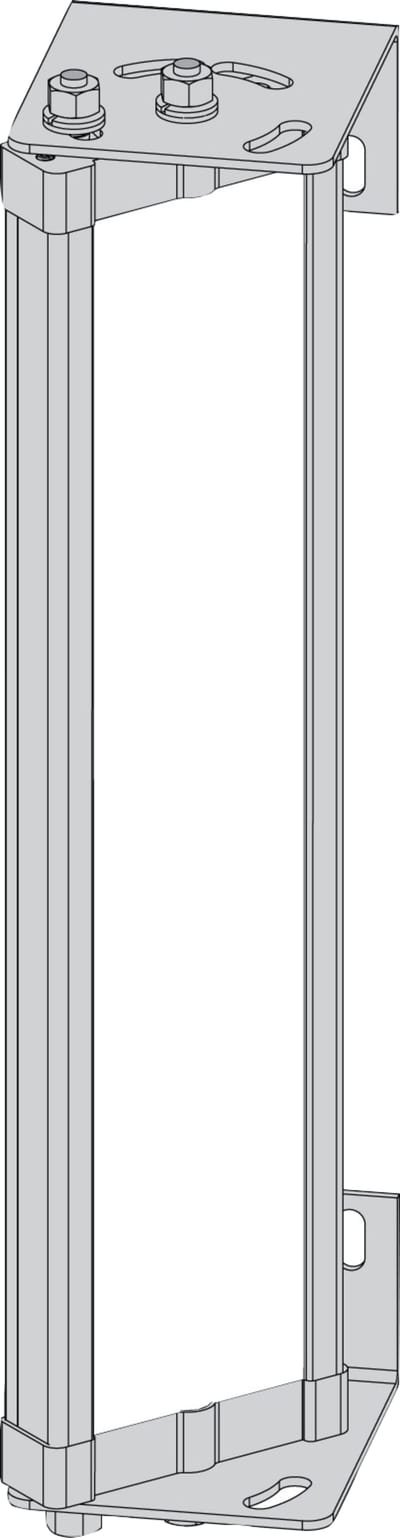

Telemecanique XUSZMD046 Deflection Mirror for Safety Light Curtains, 540 mm
Telemecanique

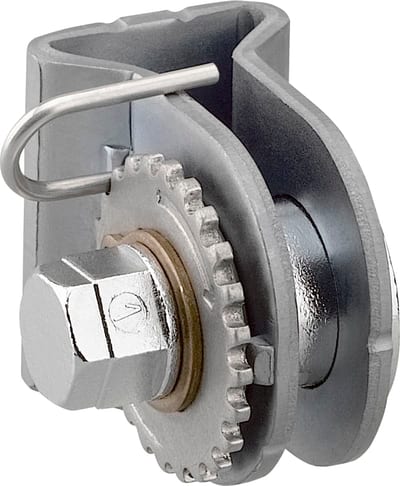

Telemecanique XY2CZ210 Wire Tensioner for XY2C Rope Pull Switches
Telemecanique

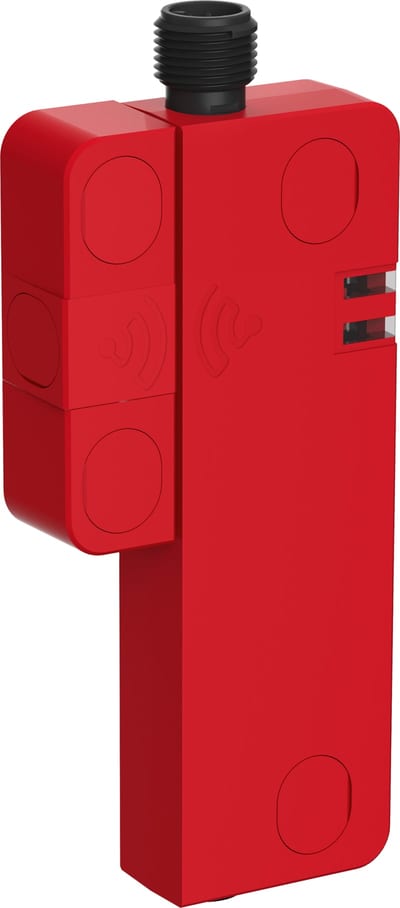

Telemecanique XCSRC10M12 Safety Limit Switch, M12 connector
Telemecanique

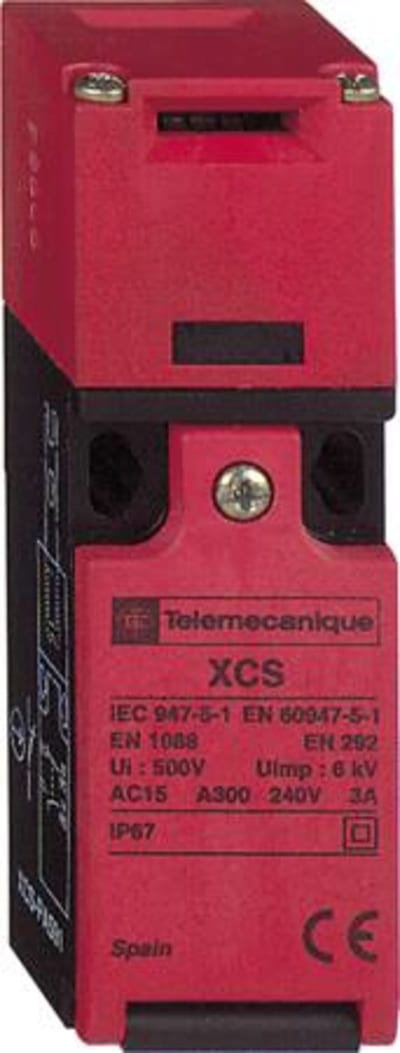

Telemecanique XCSPA492 Safety Limit Switch, 2 NC, M16 entry
