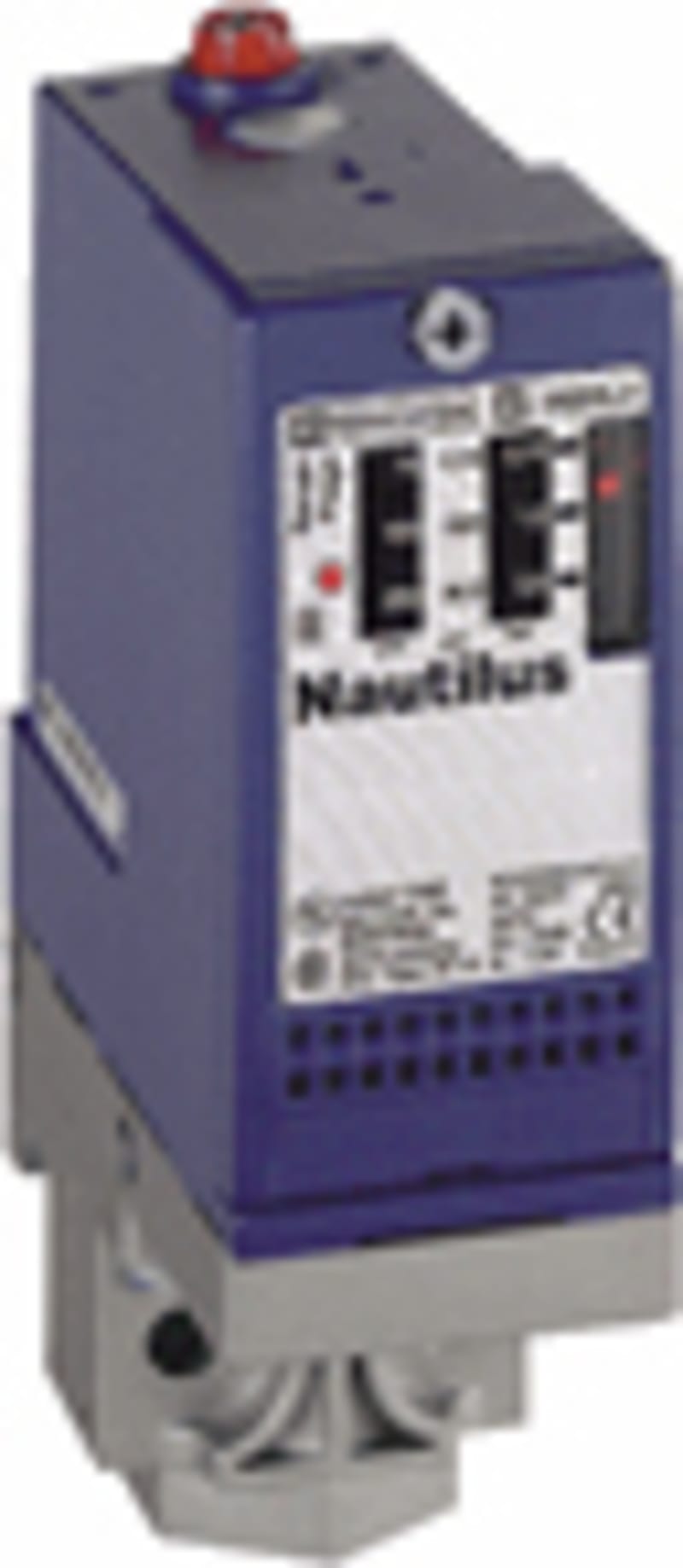

Telemecanique XMLA500N2S11 Pressure Switch, 30–500 bar

Telemecanique XMLA500N2S11 OsiSense XMLA electromechanical pressure switch, adjustable range 30–500 bar.

Manufacturer part number (MPN)

XMLA500N2S11 EAN / GTIN: 3666916025451 Sales unit: pcs Pressure: 30-500 bar Measuring range: 30–500 bar Width: 35 mm Height: 113 mm Depth: 75 mm Connection: Internal thread cylindrical BSPP-G (ISO 228-1) With display: No With manual on/off switch: No Initial setting: 30000–500000 hPa End setting: 10000–455000 hPa Max. operation pressure: 625000 hPa Number of auxiliary contacts as change-over contact: 1 Type of electric connection: Screw connection Explosion-proof: No Degree of protection (IP): IP66 Switch off pressure: 10–455 bar Rated voltage Ue at AC 50 Hz: 120–240 V Rated voltage Ue at AC 60 Hz: 120–240 V Rated voltage Ue at DC: 250 V Bursting pressure: 2250 bar Engaging pressure: 30–500 bar Electronic version: No Suitable as 2-point controller: No Suitable as limiter: Yes Suitable as guard: Yes Max. test pressure: 1125 bar Medium temperature: 0–160 °C With hand operation: No Pressure-switching differential: 45 bar Max. operating pressure: 500000 hPa Country of origin: Czechia

HS Code

9032.20

• EAN 3666916025451
• SAP 1000341609
• Code 8376314
