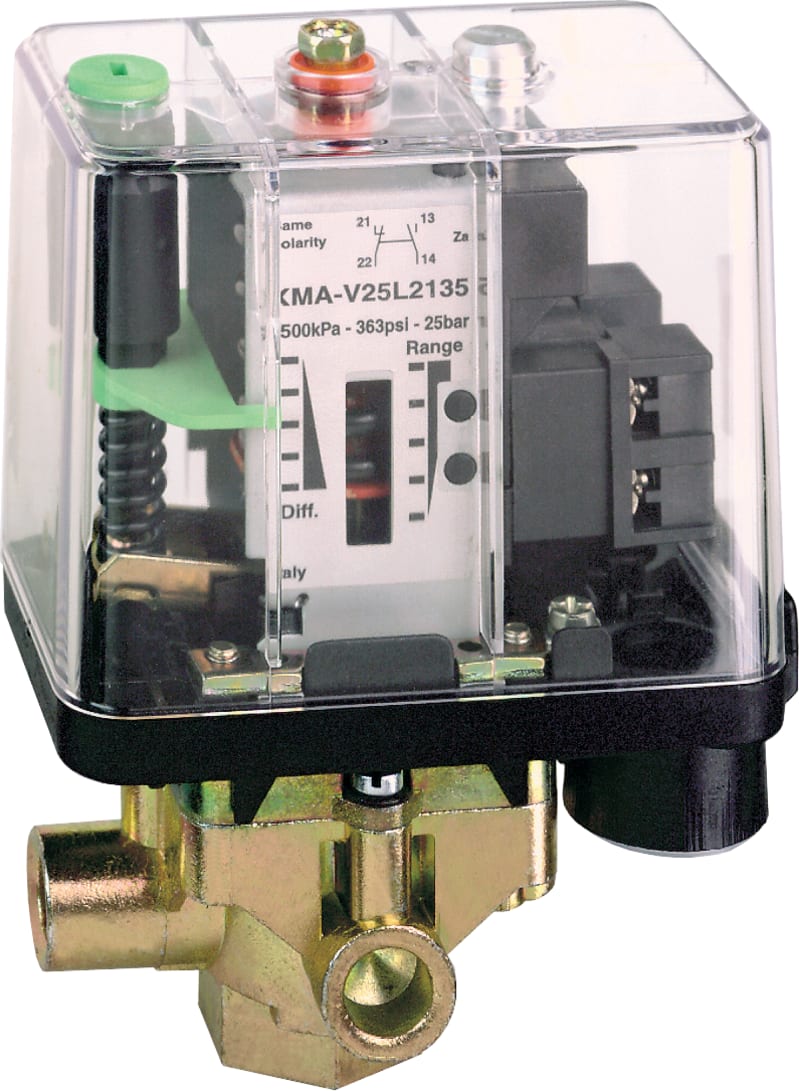

Telemecanique XMAV25L2135 Pressure Switch 3.5–25 bar, Externally Adjustable, Transparent Cover
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique OsiSense XMAV25L2135 pressure switch, range 3.5–25 bar, externally adjustable, with transparent cover.
Technical Specifications
- Manufacturer part number (MPN)
- XMAV25L2135 EAN / GTIN: 3666916026618 Sales unit: pcs Package quantity: 16 pcs Pressure: 3.5-25 bar Width: 57 mm Height: 113 mm Depth: 97.5 mm With display: No With manual on/off switch: No Initial setting: 3500–25000 hPa End setting: 100–20500 hPa Max. operation pressure: 31250 hPa Number of auxiliary contacts as change-over contact: 1 Type of electric connection: Screw connection Explosion-proof: No Degree of protection (IP): IP54 Switch off pressure: 0.1–20.5 bar Rated voltage Ue at AC 50 Hz: 120–240 V Rated voltage Ue at AC 60 Hz: 120–240 V Rated voltage Ue at DC: 250 V Bursting pressure: 100 bar Engaging pressure: 3.5–25 bar Electronic version: No Suitable as 2-point controller: Yes Suitable as limiter: Yes Suitable as guard: Yes Max. test pressure: 56.25 bar Medium temperature: 0–70 °C With hand operation: No Pressure-switching differential: 4.5 bar Max. operating pressure: 25000 hPa Country of origin: Czechia
Standards & Compliance
- HS Code
- 9032.20
Cross References
- EAN 3666916026618
- SAP 1000341514
- Code 82036160
Product Documentation
