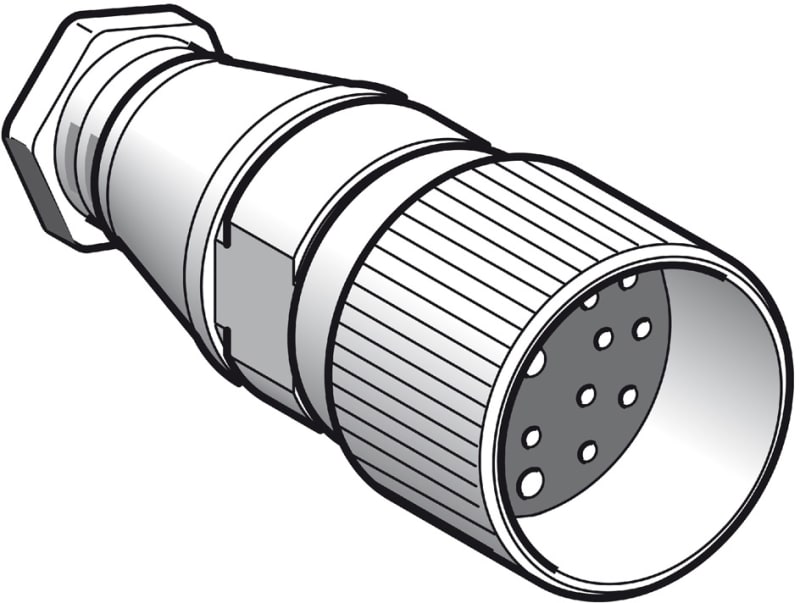

Telemecanique XZCC23FDM190S Field-Wireable Connector, M23, Female, Straight, 19-pin, Metal
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XZCC23FDM190S field-wireable (user-attachable) connector, M23 female straight, 19-pin, metal body, screw-clamp wiring, for sensor and actuator cabling.
Technical Specifications
- Manufacturer part number (MPN)
- XZCC23FDM190S
- EAN / GTIN
- 3666916069844
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Contact type
- Pin
- Diameter connector
- 23 mm
- Thread size M
- 26
- Number of data contacts
- 19
- For cable outer diameter
- 13.5 mm
- Type of housing
- Straight
- Rated current In
- 7.5 A
- Ambient temperature
- -25–110 °C
- Rated voltage
- 60 V
- Connectable conductor cross section solid-core
- 0–1 mm²
- Connectable conductor cross section multi-wired
- 0–1 mm²
- Type of electric connection
- Soldering connection
- With interlocking device
- No
- Coating housing
- None
- Type of locking
- None
- Operating temperature
- -25–110 °C
- With protective conductor
- No
- Degree of protection (IP), mounted
- IP65/IP67
- Screened
- No
- With status indication
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916069844
- SAP 1000046587
- Code 8784768
Product Documentation
