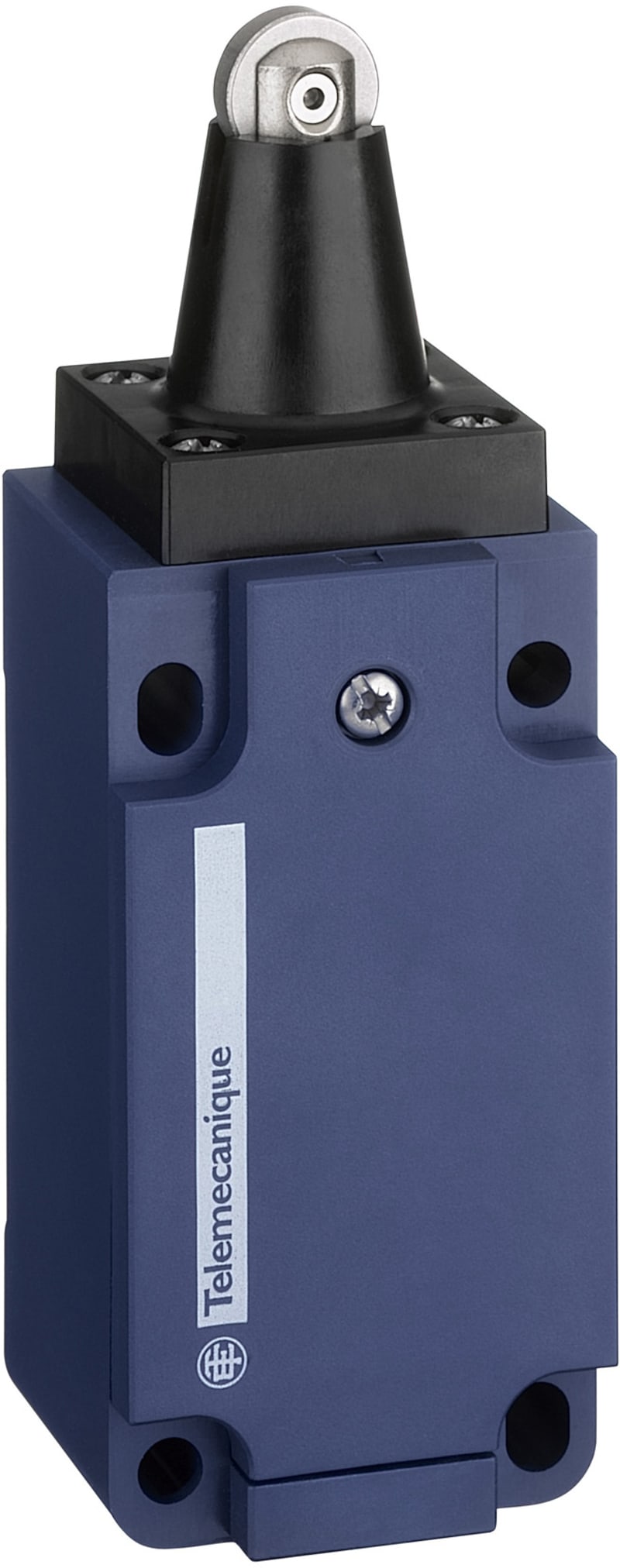

Telemecanique XCKS limit switch, plastic body, roller plunger head, 1 NC + 1 NO, snap action with positive opening, M20 cable entry, IP65 XCKS102H29

Telemecanique XCKS102H29 position (limit) switch, plastic body, with a straight roller plunger head. 1 NC + 1 NO contact block, snap action, with positive (forced) opening on the NC contact, so it is rated for use in safety circuits. M20 cable entry, protection IP65.

Manufacturer part number (MPN)

XCKS102H29

EAN / GTIN

3666916053904

HS code

8536.90

Sales unit

pcs

Package quantity

36 pcs

Switching function

Quick-break switch

Rated operation current Ie at AC-15, 230 V

3 A

Rated operation current Ie at DC-13, 230 V

0.27 A

Housing material

Plastic

Suitable for safety functions

Yes

With status indication

No

Type of interface for safety communication

None

Type of electric connection

Cable entry metrical

Explosion safety category for gas

None

Explosion safety category for dust

None

Construction type housing

Cuboid

Degree of protection (IP)

IP65

Forced opening

Yes

Type of control element

Roller cam

Type of interface

None

Output electronic

No

Width sensor

40 mm

Height of sensor

72.5 mm

Length of sensor

36 mm

Switching function latching

No

Ambient temperature during operating

-25–70 °C

Number of contacts as normally closed contact

1

Number of contacts as normally open contact

1

Alignment of the control element

Roller cam straight

Country of origin

Indonesia

HS Code

8536.90
