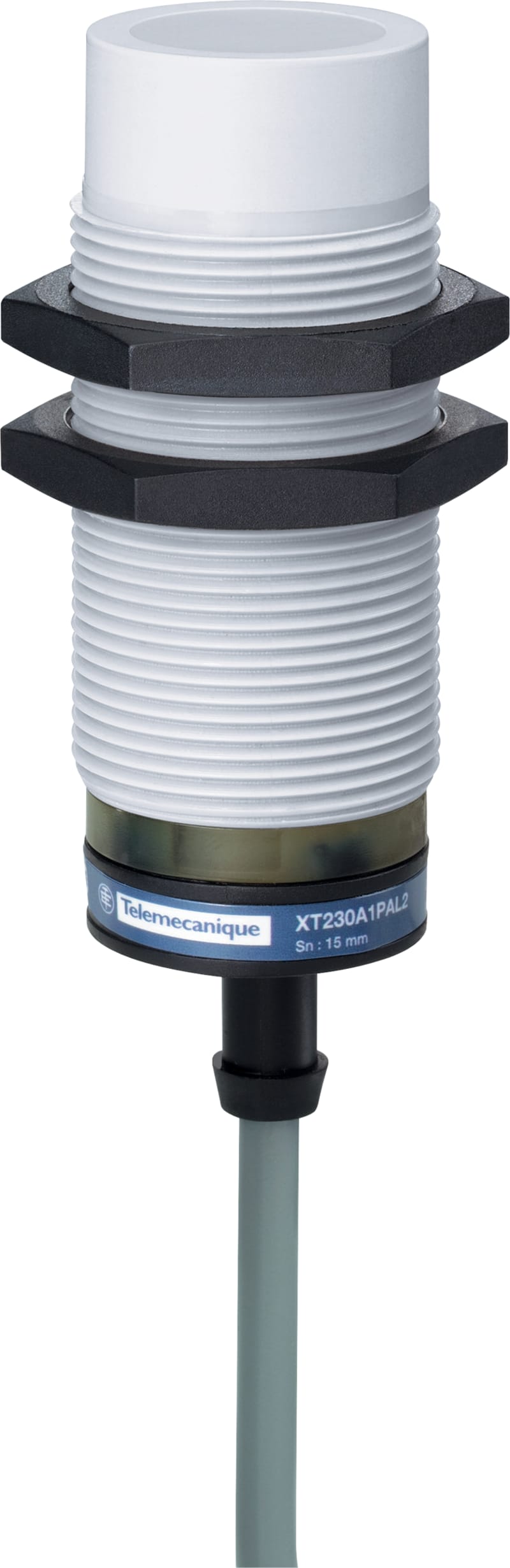

Telemecanique XT230A1FBL2 Capacitive Proximity Sensor Ø30 mm, AC 2-Wire, 2 m cable
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique OsiSense XT230A1FBL2 capacitive proximity sensor, Ø30 mm body, 24-240 V AC, AC 2-Wire output, sensing distance 15 mm, 2 m cable.
Technical Specifications
- Manufacturer part number (MPN)
- XT230A1FBL2
- EAN / GTIN
- 3666916020111
- HS code
- 8544.42
- Sales unit
- pcs
- Package quantity
- 30 pcs
- Voltage
- 24-240 V AC
- Length of sensor
- 74.5 mm
- Diameter sensor
- 30 mm
- Mechanical mounting condition for sensor
- Not flat
- Switching distance
- 15 mm
- Suitable for safety functions
- No
- Type of switching output
- 2-wire
- Type of electric connection
- Cable axial
- Number of semiconductor outputs with signalling function
- 1
- Type of actuation
- Metallic and non-metallic target
- Type of interface
- None
- Type of interface for safety communication
- None
- Construction type housing
- Cylinder, screw-thread
- Cascadable
- No
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Max. output current at protected output
- 300 mA
- Supply voltage
- 24–240 V
- Rated control supply voltage AC 50 Hz
- 24–240 V
- Rated control supply voltage AC 60 Hz
- 24–240 V
- Rated control supply voltage DC
- 24 V
- Voltage type
- AC
- Switching frequency
- 15 Hz
- With monitoring function downstream switching devices
- No
- With status indication
- No
- Housing material
- Plastic
- Compression-resistant
- No
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Country of origin
- China
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 3666916020111
- SAP 1000341479
- Code 8376094
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XCKJ10513D Limit Switch, Short Lever with Steel Roller, Metal Body, M12 connector
Telemecanique
Telemecanique XY2CH13190H7 Emergency Stop Rope Pull Switch, 30 m Rope Span, 2 NC + 1 NO, 1/2" NPT entry
Telemecanique
Telemecanique OsiSense XS1N30PB349D Inductive Proximity Sensor — M30 barrel, Sn 20 mm, PNP, NC
Telemecanique
Telemecanique OsiSense XS630B1MBL2 Inductive Proximity Sensor — M30 barrel, Sn 15 mm, 2-Wire AC/DC, NC, pre-wired cable
Telemecanique
Telemecanique XGSZ22E4510 RFID Ethernet Communication Box
Telemecanique
Limit switch m deutsch connector (XCMV2502D44)
Telemecanique
Telemecanique XZCPA1141L5 Sensor Cable, M12 female, 4-pin, 5 m
Telemecanique
Telemecanique XCSPA892 Safety Limit Switch, 1 NC + 1 NO, M16 entry
Technical guides
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XT230A1FBL2?
- XT230A1FBL2 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XT230A1FBL2.
- What is the HS code for XT230A1FBL2?
- The customs tariff (HS) code for XT230A1FBL2 is 8544.42.
- Who manufactures XT230A1FBL2?
- XT230A1FBL2 is a Telemecanique product in the Sensors & Instrumentation range.
- Is a datasheet available for XT230A1FBL2?
- Yes — the XT230A1FBL2 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XT230A1FBL2?
- The minimum order quantity is 1.
- Is XT230A1FBL2 available?
- Yes — XT230A1FBL2 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
