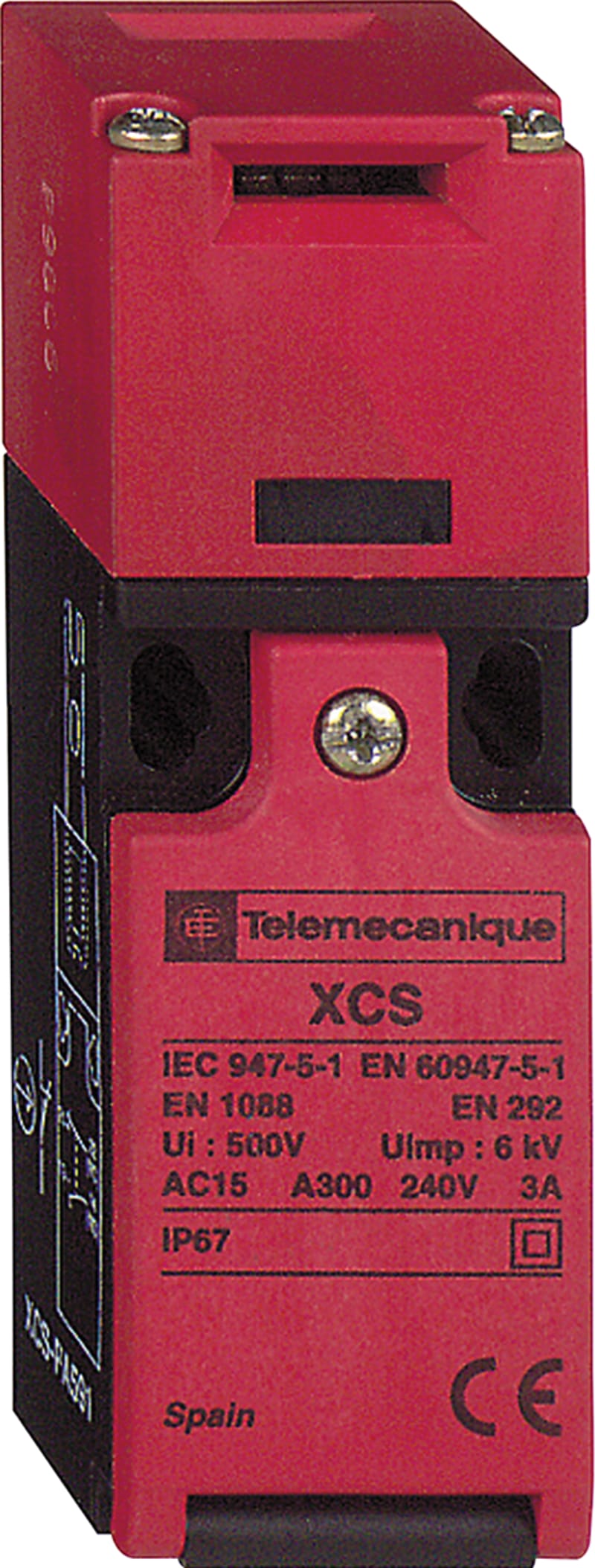

Telemecanique XCSPA892 Safety Limit Switch, 1 NC + 1 NO, M16 entry
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XCSPA892 safety limit switch with positive opening contacts, 1 NC + 1 NO contacts, M16 entry.
Technical Specifications
- Manufacturer part number (MPN)
- XCSPA892
- EAN / GTIN
- 3666916047149
- Sales unit
- pcs
- Contact configuration
- NC + NO + NO
- Rated operation current Ie at AC-15, 230 V
- 3 A
- Rated operation current Ie at DC-13, 230 V
- 0.27 A
- Housing material
- Plastic
- Suitable for safety functions
- Yes
- With status indication
- No
- Type of switching contact
- Slow-action switch
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry metrical
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Degree of protection (IP)
- IP67K
- Forced opening
- Yes
- Type of interface
- None
- Rated operation current Ie at AC-15, 125 V
- 6 A
- Rated operation current Ie at DC-13, 125 V
- 0.55 A
- Width sensor
- 30 mm
- Height of sensor
- 94 mm
- Length of sensor
- 30 mm
- Ambient temperature during operating
- -25–70 °C
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 2
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916047149
- SAP 1000341816
- Code 8998286
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique OsiSense XS8C4A1NCP20 Inductive Proximity Sensor — 40 × 40 × 117 mm block, Sn 20 mm, NPN, complementary NO + NC, screw terminals
Telemecanique
Selector Head 2 Fixed Positions Green
ZB5AD203
Telemecanique
Telemecanique ZCKY091 Actuator Lever for ZCK Limit Switches
Telemecanique
Telemecanique XY2CJL17H29 Emergency Stop Rope Pull Switch, 30 m Rope Span, 2 NC, M20 entry
Telemecanique
Telemecanique XZCPA1241L20 Sensor Cable, M12 female, 4-pin, PVC, 20 m
Telemecanique
Telemecanique XCKML110 Limit Switch
Telemecanique
Telemecanique XZCPA1241L5 Sensor Cable, M12 female, 4-pin, 5 m
Telemecanique
Telemecanique Modular multifunction 3-Phase supply control relay, 5 A, 1 CO, 208...480 V AC RM17TE00
Technical guides
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XCSPA892?
- XCSPA892 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XCSPA892.
- What is the HS code for XCSPA892?
- The customs tariff (HS) code for XCSPA892 is 8536.50.
- Who manufactures XCSPA892?
- XCSPA892 is a Telemecanique product in the Safety & Detection range.
- Is a datasheet available for XCSPA892?
- Yes — the XCSPA892 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XCSPA892?
- The minimum order quantity is 1.
- Is XCSPA892 available?
- Yes — XCSPA892 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
