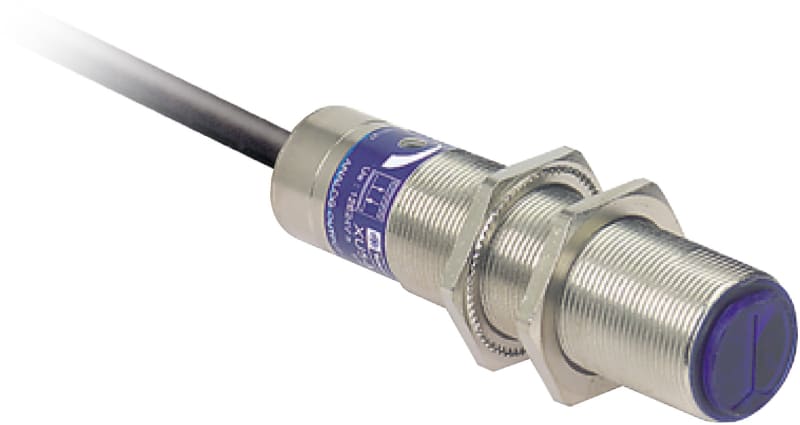

Photocell Ø18 MM Direct (XU8M18MB230)
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XU8M18MB230 Photocell Ø18 mm Direct.
Technical Specifications
- Manufacturer part number (MPN)
- XU8M18MB230
- EAN / GTIN
- 3666916037058
- Sales unit
- pcs
- Package quantity
- 11 pcs
- Diameter
- 18 mm
- Adjustment range
- 120 mm
- Triangulation
- Background fade-out
- Pre failure notice
- No
- With time function
- No
- Rated switching distance
- 120 mm
- Max. switching distance
- 120 mm
- Max. output current
- 200 mA
- With reflector
- No
- Analogue output 0 V ... 10 V
- No
- Analogue output 0 mA ... 20 mA
- No
- Analogue output 4 mA ... 20 mA
- No
- Analogue output -10 V ... +10 V
- No
- With other analogue output
- No
- Setting procedure
- Manual adjustment
- With communication interface analogue
- No
- With communication interface AS-Interface
- No
- With communication interface CANOpen
- No
- With communication interface DeviceNet
- No
- With communication interface Ethernet
- No
- With communication interface INTERBUS
- No
- With communication interface PROFIBUS
- No
- With communication interface RS-232
- No
- With communication interface RS-422
- No
- With communication interface RS-485
- No
- With communication interface SSD
- No
- With communication interface SSI
- No
- Number of semiconductor outputs with signalling function
- 1
- Number of protected semiconductor outputs
- 1
- Type of electric connection
- Cable radial
- Type of switch function
- Breaker contact (NC)
- Operation agent-safety class
- Safety class 0
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cylinder, screw-thread
- Diameter sensor
- 18 mm
- Length of sensor
- 82 mm
- Sensing mode
- Dark switching
- Material of optical surface
- Plastic
- Housing material
- Metal
- Max. output current at protected output
- 200 mA
- Min. reflector distance
- 0 mm
- Ambient temperature
- -25–55 °C
- Response time
- 20 ms
- Switching frequency
- 25 Hz
- Type of safety according to IEC 61496-1
- 1
- Rated control supply voltage AC 50 Hz
- 24–240 V
- Rated control supply voltage AC 60 Hz
- 24–240 V
- Rated control supply voltage DC
- 24–240 V
- Voltage type
- AC/DC
- With monitoring function downstream switching devices
- No
- Laser protection class
- None
- Type of light
- Infrared light
- With restart blockage
- No
- Suitable for safety functions
- No
- Degree of protection (IP)
- IP67K
- Operating distance
- 120 mm
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916037058
- SAP 1000066826
- Code 8915769
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XZCP1965L5 Sensor Cable, M8 female angled, 3-pin, 5 m
Telemecanique
Telemecanique XUVF30M8 Frame Photoelectric Sensor 30 × 30 mm, Detects 2 mm Objects, PNP/NPN selectable, M8 connector
Telemecanique
Telemecanique XUB1ANBNM12 Photoelectric Sensor M18, Retroreflective, Plastic, NPN, M12 connector
Telemecanique
Telemecanique XUSL4E30H106LWH Safety Light Curtain Type 4, Hand Detection (30 mm), 1060 mm Height
Telemecanique
Telemecanique XCSPA993 Safety Limit Switch, 2 NC
Telemecanique
Telemecanique OsiSense XS8C4A1DPP20 Inductive Proximity Sensor — 40 × 40 × 117 mm block, Sn 20 mm, 2-Wire DC, screw terminals
Telemecanique
Telemecanique XMLA070D2S11 Pressure Switch, 5–70 bar
Telemecanique

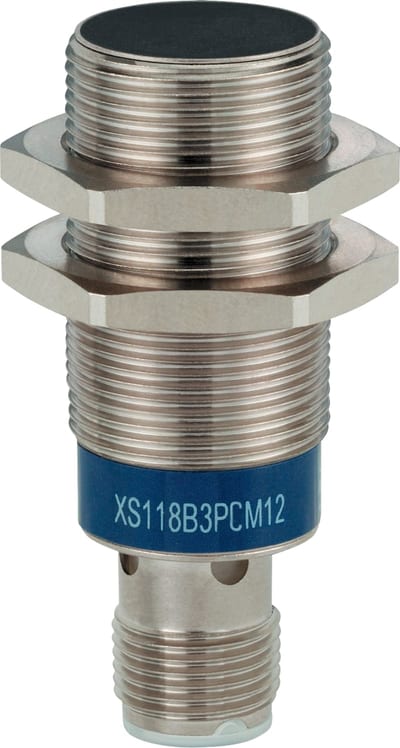

Telemecanique OsiSense XS118B3PCM12 Inductive Proximity Sensor — M18 barrel, Sn 8 mm, PNP, NO, M12 connector (4-Pin)
