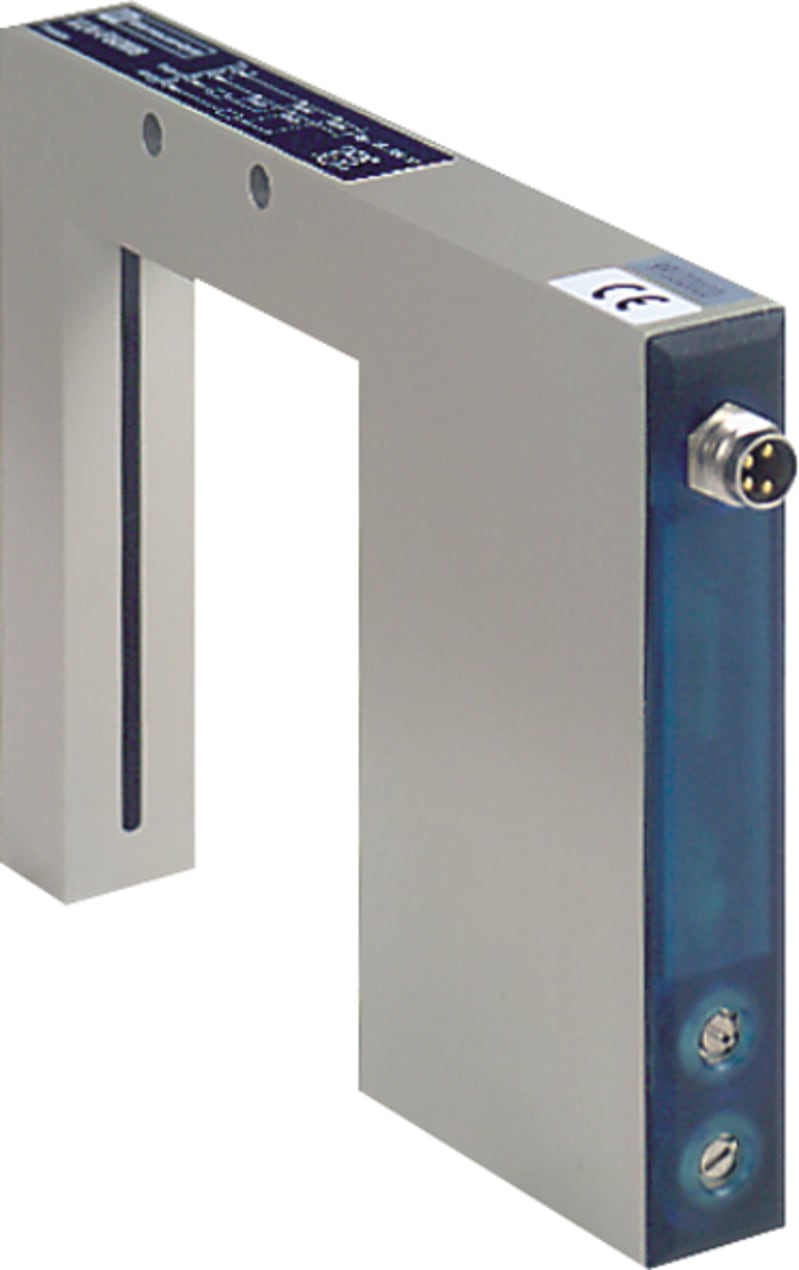

Telemecanique XUVF30M8 Frame Photoelectric Sensor 30 × 30 mm, Detects 2 mm Objects, PNP/NPN selectable, M8 connector
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XUVF30M8 frame (slot) photoelectric sensor, 30 × 30 mm opening, detects objects down to 2 mm, PNP/NPN selectable output, M8 connector.
Technical Specifications
- Manufacturer part number (MPN)
- XUVF30M8
- EAN / GTIN
- 3666916029152
- Sales unit
- pcs
- Package quantity
- 12 pcs
- Min. object size
- 2 mm
- Frame opening lengthwise
- 30 mm
- Frame opening cross
- 30 mm
- Max. output current
- 100 mA
- With time function
- Yes
- With reflector
- No
- Analogue output 0 V ... 10 V
- No
- Analogue output 0 mA ... 20 mA
- No
- Analogue output 4 mA ... 20 mA
- No
- Analogue output -10 V ... +10 V
- No
- With other analogue output
- No
- Setting procedure
- Manual adjustment
- With communication interface analogue
- No
- With communication interface AS-Interface
- No
- With communication interface CANOpen
- No
- With communication interface DeviceNet
- No
- With communication interface Ethernet
- No
- With communication interface INTERBUS
- No
- With communication interface PROFIBUS
- No
- With communication interface RS-232
- No
- With communication interface RS-422
- No
- With communication interface RS-485
- No
- With communication interface SSD
- No
- With communication interface SSI
- No
- Number of semiconductor outputs with signalling function
- 1
- Number of protected semiconductor outputs
- 1
- Type of electric connection
- Connector M8
- Type of switching output
- PNP/NPN
- Type of switch function
- Programmable/configurable
- Operation agent-safety class
- Safety class 0
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Special construction
- Width sensor
- 108 mm
- Height of sensor
- 50 mm
- Length of sensor
- 15 mm
- Sensing mode
- Dark switching
- Material of optical surface
- Plastic
- Housing material
- Metal
- Max. output current at protected output
- 100 mA
- Min. reflector distance
- 0 mm
- Ambient temperature
- 0–60 °C
- Response time
- 1 ms
- Switching frequency
- 500 Hz
- Type of safety according to IEC 61496-1
- 1
- Rated control supply voltage DC
- 24 V
- Voltage type
- AC/DC
- With monitoring function downstream switching devices
- No
- Pre failure notice
- No
- Laser protection class
- None
- Type of light
- Infrared light
- With restart blockage
- No
- Suitable for safety functions
- No
- Degree of protection (IP)
- IP65
- Country of origin
- France
Standards & Compliance
- HS Code
- 8541.41
Cross References
- EAN 3666916029152
- SAP 1000341094
- Code 8375441
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XUB1ANBNM12 Photoelectric Sensor M18, Retroreflective, Plastic, NPN, M12 connector
Telemecanique
Telemecanique XUSL4E30H106LWH Safety Light Curtain Type 4, Hand Detection (30 mm), 1060 mm Height
Telemecanique
Telemecanique XCSPA993 Safety Limit Switch, 2 NC
Telemecanique
Telemecanique OsiSense XS8C4A1DPP20 Inductive Proximity Sensor — 40 × 40 × 117 mm block, Sn 20 mm, 2-Wire DC, screw terminals
Telemecanique
Telemecanique XMLA070D2S11 Pressure Switch, 5–70 bar
Telemecanique
Telemecanique OsiSense XS118B3PCM12 Inductive Proximity Sensor — M18 barrel, Sn 8 mm, PNP, NO, M12 connector (4-Pin)
Telemecanique
Telemecanique XZCPVB1564L2 Sensor Cable, M12 male, PVC, 2 m
Telemecanique
LED Green 24V (ZB6EB3B)
Technical guides
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XUVF30M8?
- XUVF30M8 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XUVF30M8.
- What is the HS code for XUVF30M8?
- The customs tariff (HS) code for XUVF30M8 is 8541.41.
- Who manufactures XUVF30M8?
- XUVF30M8 is a Telemecanique product in the Sensors & Instrumentation range.
- Is a datasheet available for XUVF30M8?
- Yes — the XUVF30M8 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XUVF30M8?
- The minimum order quantity is 1.
- Is XUVF30M8 available?
- Yes — XUVF30M8 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
