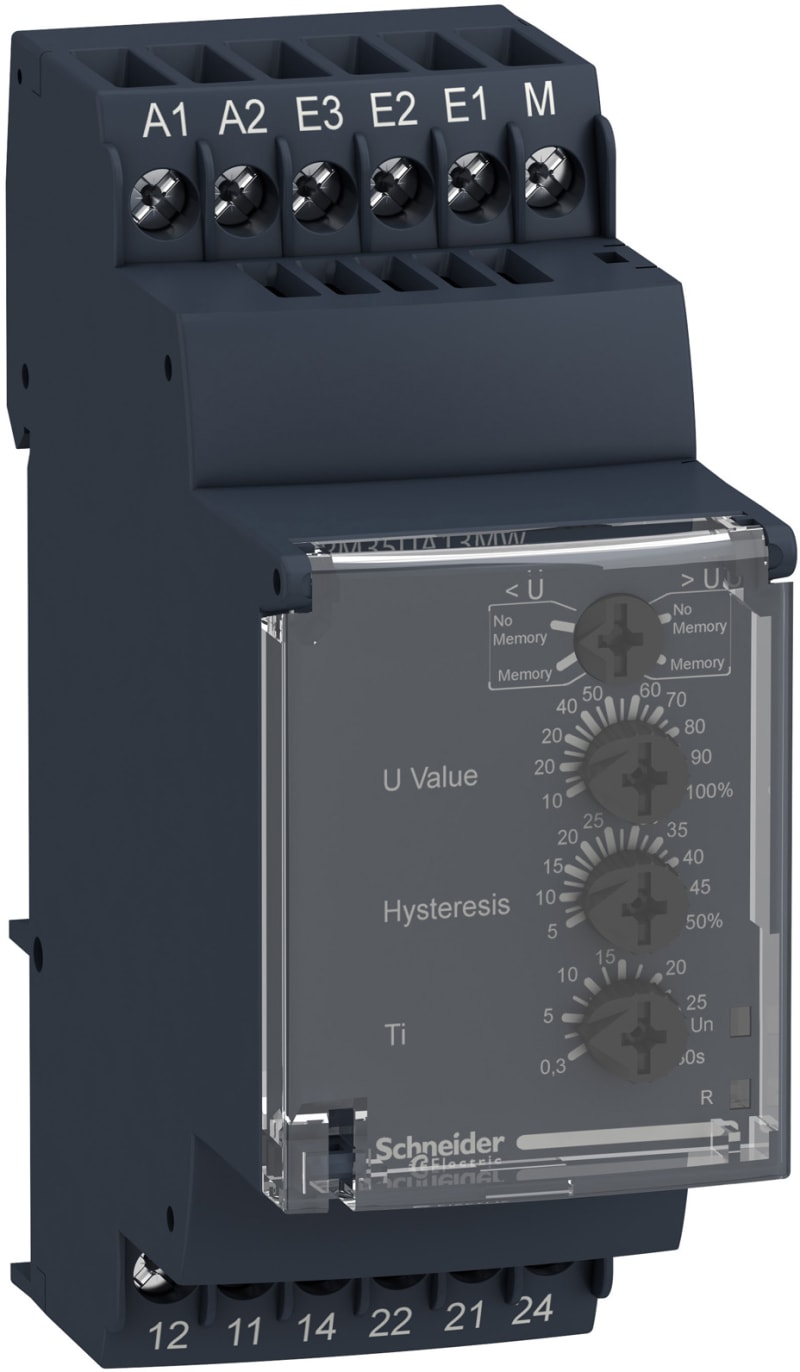

Telemecanique multifunction voltage control relay RM35-U - range 15..600 V RM35UA13MW

The relay is easy to install and has front-panel adjustment of the voltage threshold and, where applicable, the time delay.

Manufacturer part number (MPN)

RM35UA13MW EAN / GTIN: 3389119405317 Sales unit: pcs Package quantity: 48 pcs Rated current: 5 A Range of product: Harmony Control Relays Relay type: Multifunction voltage control relay Product or component type: Voltage control relay Relay name: RM35UA Relay monitored parameters: Overvoltage or undervoltage detection Control type: Without test button Contacts type and composition: 2 C/O [Us] rated supply voltage: 24...240 V AC/DC 50/60 Hz, non self-powered Supply voltage limits: 20.4…264 V AC/DC Measurement range: 15...600 V AC/DC Hysteresis: 5…50 % of threshold setting Repeat accuracy: +/- 0.5 % for input and measurement circuit; +/- 2 % for time delay Sensitivity scale: 15...150 V E1-M terminals; 30...300 V E2-M terminals; 60...600 V E3-M terminals Measurement error: +/- 0.05 %/°C with temperature variation; < 1 % over the whole range with voltage variation Time delay type: Adjustable 0.3...30 s, 0 + 10 % Tt- time delay upon fault Setting accuracy of time delay: 10 % Reset time: 1500 ms time delay Power on delay: 600 ms Output contacts: 2 C/O nominal output current: 5 A Maximum switching voltage: 250 V AC/DC Switching capacity in VA: 1250 VA minimum switching current: 10 mA at 5 V DC Maximum switching current: 5 A AC/DC Electrical durability: 100000 cycles Mechanical durability: 30000000 cycles operating voltage tolerance: - 15 % + 10 % Un Power consumption in VA: 0…3.5 VA AC Maximum power consumption in W: 0.6 W DC Control circuit frequency: 40...70 Hz +/- 10 % Resistance across terminals: 150 mOhm at E1-M terminals; 300 mOhm at E2-M terminals; 600 mOhm at E3-M terminals Measurement accuracy: +/- 10 % of the full scale value Polarity: Non reversible polarity on DC supply Maximum measuring cycle: 30 ms measurement cycle as true rms value Quality labels: CE Threshold setting: 10...100 % Operating rate: <= 360 operations/hour full load Electromagnetic compatibility: Emission standard for industrial environments conforming to IEC 61000-6-4; Emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3; Immunity for industrial environments conforming to NF EN/IEC 61000-6-2 Standards: IEC 60255-6 Product certifications: GOST; UL; GL; C-Tick; CSA Directives: 73/23/EEC - low voltage directive; 89/336/EEC - electromagnetic compatibility Ambient air temperature for storage: -40…70 °C; -40…70 °C Ambient air temperature for operation: -20…50 °C Relative humidity: 95 % at 55 °C conforming to IEC 60068-2-30 IP degree of protection: IP20 (terminals) conforming to IEC 60529; IP30 (casing) conforming to IEC 60529 Pollution degree: 3 conforming to IEC 60664-1 Overvoltage category: III conforming to IEC 60664-1 Dielectric test voltage: 2 kV, 1 min AC 50 Hz conforming to IEC 60255-5; 2 kV, 1 min AC 50 Hz conforming to IEC 60664-1 Insulation resistance: > 500 MOhm at 500 V DC between supply and relay output conforming to IEC 60255-5; > 500 MOhm at 500 V DC between measurement and relay output conforming to IEC 60664-1; > 1 MOhm at 500 V DC between supply and measurement conforming to IEC 60255-5; > 500 MOhm at 500 V DC between supply and relay output conforming to IEC 60664-1; > 500 MOhm at 500 V DC between measurement and relay output conforming to IEC 60255-5; > 1 MOhm at 500 V DC between supply and measurement conforming to IEC 60664-1 [Ui] rated insulation voltage: 250 V conforming to IEC 60664-1; 600 V conforming to IEC 60664-1 Operating position: Any position without derating Connections - terminals: Screw terminals, 1 x 0.5...1 x 4 mm² (20 AWG...11 AWG) solid without cable end; Screw terminals, 2 x 0.5...2 x 2.5 mm² (20 AWG...14 AWG) solid without cable end; Screw terminals, 1 x 0.2...2 x 2.5 mm² (24 AWG...12 AWG) flexible with cable end; Screw terminals, 2 x 0.2...2 x 1.5 mm² (24 AWG...16 AWG) flexible with cable end Tightening torque: 0.6…1 N.m conforming to IEC 60947-1 Housing material: Polycarbonate Local signalling: LED (green) for power ON; LED (yellow) for relay ON Mounting support: 35 mm symmetrical DIN rail conforming to IEC 60715 Reliability data: B10d = 290000; MTTFd = 308.2 years Width: 35 mm; 35.6 mm Height: 90 mm; 88.9 mm Depth: 72 mm; 71.1 mm Product weight: 0.13 kg; 0.13 kg Number of Units in Package 1: 1 Number of Units in Package 2: 48 Country of origin: ID Warranty (in months): 18 Type of electric connection: Screw connection With detachable clamps: No Single-phase under voltage possible: Yes Three-phase under voltage possible: No Single-phase overvoltage possible: Yes Three-phase overvoltage possible: No Single-phase hysteresis possible: No Three-phase hysteresis possible: No Contains function DC-under voltage: Yes Contains function DC overvoltage: Yes Contains function DC-voltage hysteresis: No Voltage measuring range 1: 15–600 V Type of voltage measuring range: AC Rated control supply voltage AC 50 Hz: 24–240 V Rated control supply voltage AC 60 Hz: 24–240 V Rated control supply voltage DC: 24–240 V Voltage type for actuating: AC/DC Response value voltage: 15–600 V Min. adjustable delay-on energization time: 0.3 s Max. permitted delay-on energization time: 30 s Min. adjustable off-delay time: 0.3 s Max. permitted off-delay time: 30 s Number of contacts as change-over contact: 2
