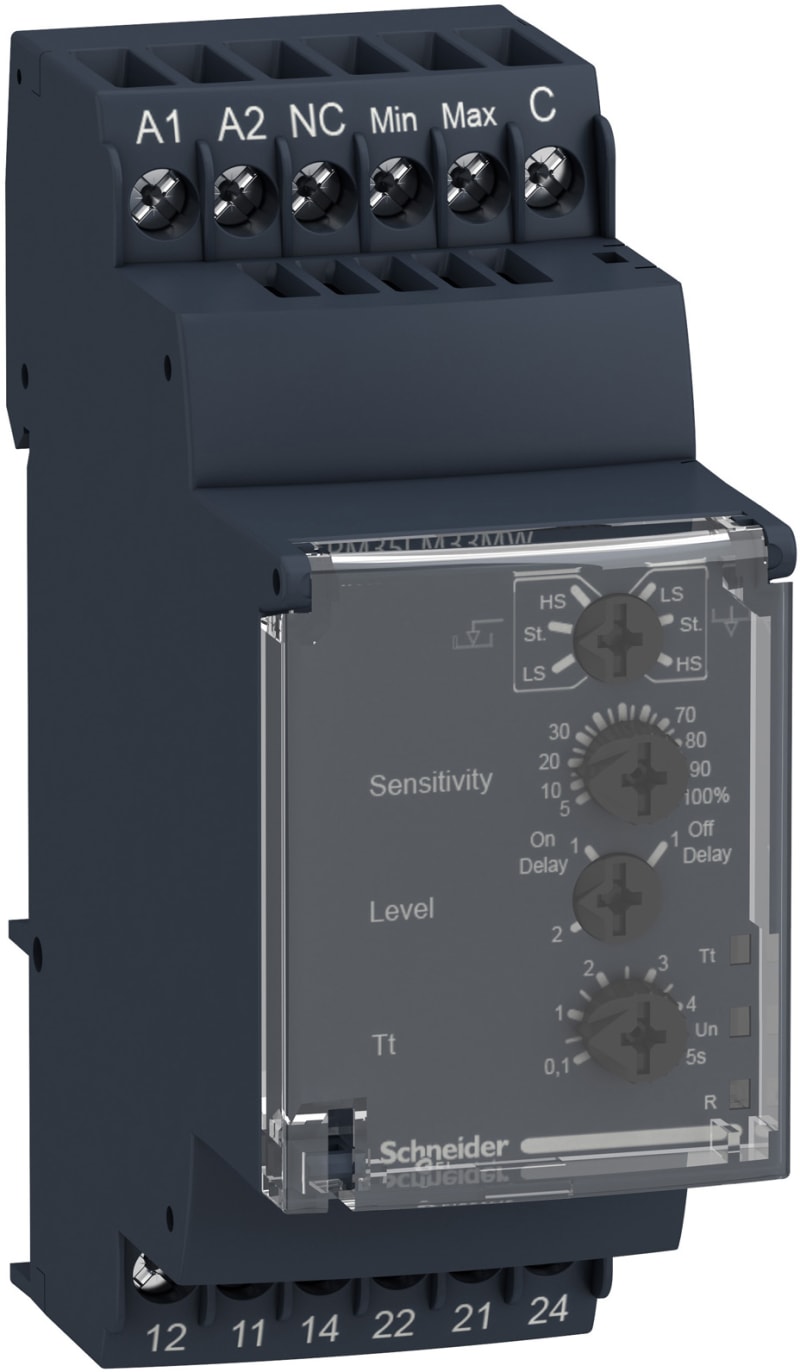

Telemecanique speed control relay RM35-S - 24..240 V AC/DC RM35S0MW

Telemecanique RM35S0MW Relay for speed.

Manufacturer part number (MPN)

RM35S0MW EAN / GTIN: 3389119405256 HS code: 8536.90 Sales unit: pcs Package quantity: 48 pcs Rated current: 5 A Range of product: Harmony Control Relays Relay type: Speed control relays Product or component type: Speed control relay Relay name: RM35S Relay monitored parameters: Overspeed; Underspeed Time delay range: 0.6...60 s adjustable on energisation delay (tolerance: 0...10 % of the full scale value) Switching capacity in VA: 1250 VA minimum switching current: 10 mA at 5 V DC Maximum power consumption in VA: 5 VA AC Measurement range: 0.05...0.5 s; 0.5...5 min; 1...10 min; 1...10 s; 0.5...5 s; 0.1...1 s; 0.1...1 min Utilisation category: AC-12 conforming to IEC 60947-5-1; AC-13 conforming to IEC 60947-5-1; AC-14 conforming to IEC 60947-5-1; AC-15 conforming to IEC 60947-5-1; DC-12 conforming to IEC 60947-5-1; DC-13 conforming to IEC 60947-5-1; DC-14 conforming to IEC 60947-5-1 time delay: Adjustable 0.6...60 s Ti- inhibition time delay upon startup rest time in memory mode: 50 ms contact S2 in memory mode on time delay; 1 s supply Un in memory mode on time delay Maximum switching voltage: 250 V AC/DC [Un] rated nominal voltage: 24...240 V AC/DC 50/60 Hz, non self-powered Supply voltage limits: 20.4…264 V AC/DC Maximum power consumption in W: 3 W DC Width: 35 mm Output contacts: 1 C/O Contacts material: Cadmium free nominal output current: 5 A delay at power up: 0.05 s Hysteresis: 5 % of threshold Measurement accuracy: +/- 10 % of the full scale value Repeat accuracy: +/- 0.5 % for input and measurement circuit; +/- 0.5 % for time delay Measurement error: +/- 0.1 %/°C with temperature variation; < +/- 1 % over the whole range with voltage variation Input frequency: 0.0017…20 Hz Response time: 15 ms max (on crossing the threshold) Polarity: Reversible polarity on DC supply Threshold setting: 10...100 % supply voltage for sensor: 11.5...12.5 V Maximum supply current for sensors: 40 mA for < 24 V AC at 25 °C; 40 mA for < 24 V DC at 25 °C; 50 mA for 24...240 V AC; 50 mA for 24...240 V DC Impulse duration: >= 5 ms high state; >= 5 ms low state Input compatibility: 3-wire sensor (E1) PNP or NPN, 12 V, 50 mA; NAMUR sensor (E2), 12 V, 1.5 kOhm; Voltage input (E1), 0...30 V, 9.5 kOhm, high state >= 4.5 V low state <= 1 V; Volt-free contact input (E1), 12 V, 9.5 kOhm Marking: CE : EMC 89/336/EEC; CE : 73/23/EEC Overvoltage category: III conforming to IEC 60664-1 Insulation resistance: > 500 MOhm at 500 V DC between supply and relay output conforming to IEC 60255-5; > 500 MOhm at 500 V DC between measurement and relay output conforming to IEC 60664-1; > 1 MOhm at 500 V DC between supply and measurement conforming to IEC 60255-5; > 500 MOhm at 500 V DC between supply and relay output conforming to IEC 60664-1; > 500 MOhm at 500 V DC between measurement and relay output conforming to IEC 60255-5; > 1 MOhm at 500 V DC between supply and measurement conforming to IEC 60664-1 [Ui] rated insulation voltage: 250 V conforming to IEC 60664-1 operating voltage tolerance: - 15 % + 10 % Un Supply frequency: 50/60 Hz +/- 10 % Operating position: Any position without derating Connections - terminals: Screw terminals, 1 x 0.5...1 x 4 mm² (20 AWG...11 AWG) solid without cable end; Screw terminals, 2 x 0.5...2 x 2.5 mm² (20 AWG...14 AWG) solid without cable end; Screw terminals, 1 x 0.2...1 x 2.5 mm² (24 AWG...12 AWG) flexible with cable end; Screw terminals, 2 x 0.2...2 x 1.5 mm² (24 AWG...16 AWG) flexible with cable end Tightening torque: 0.6…1 N.m conforming to IEC 60947-1 Housing material: Polycarbonate Status LED: 1 LED green for power ON; 1 LED yellow for inhibit; 1 LED yellow for relay (R) Mounting support: 35 mm symmetrical DIN rail conforming to IEC 60715 Electrical durability: 100000 cycles Mechanical durability: 30000000 cycles Operating rate: <= 360 operations/hour full load Control type: Without test button Immunity to microbreaks: 50 ms Electromagnetic compatibility: Emission standard for industrial environments conforming to IEC 61000-6-4; Emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3; Immunity for industrial environments conforming to NF EN/IEC 61000-6-2 Standards: NF EN 60255-6; IEC 60255-6 Product certifications: C-Tick; GOST; UL; GL; CSA Ambient air temperature for storage: -40…70 °C Ambient air temperature for operation: -20…50 °C Relative humidity: 95 % at 55 °C conforming to IEC 60068-2-30 Vibration resistance: 0.35 mm (f= 5…57.6 Hz) conforming to IEC 60068-2-6/IEC 60255-21-1; 1 gn (f= 57.6…150 Hz) conforming to IEC 60068-2-6/IEC 60255-21-1 Shock resistance: 15 gn for 11 ms conforming to IEC 60255-21-1 IP degree of protection: IP20 (terminals) conforming to IEC 60529; IP30 (casing) conforming to IEC 60529 Pollution degree: 3 conforming to IEC 60664-1 Dielectric test voltage: 2 kV AC 50 Hz Non-dissipating shock wave: 4 kV Country of origin: ID Warranty (in months): 18

HS Code

8536.90

• EAN 3389119405256
• SAP 1000257667
• Code 8141758
