Telemecanique XCSM4116L2 Safety Limit Switch, 2 NC + 2 NO
Pricing
Request a quote
We reply within 24 hours
Product Description

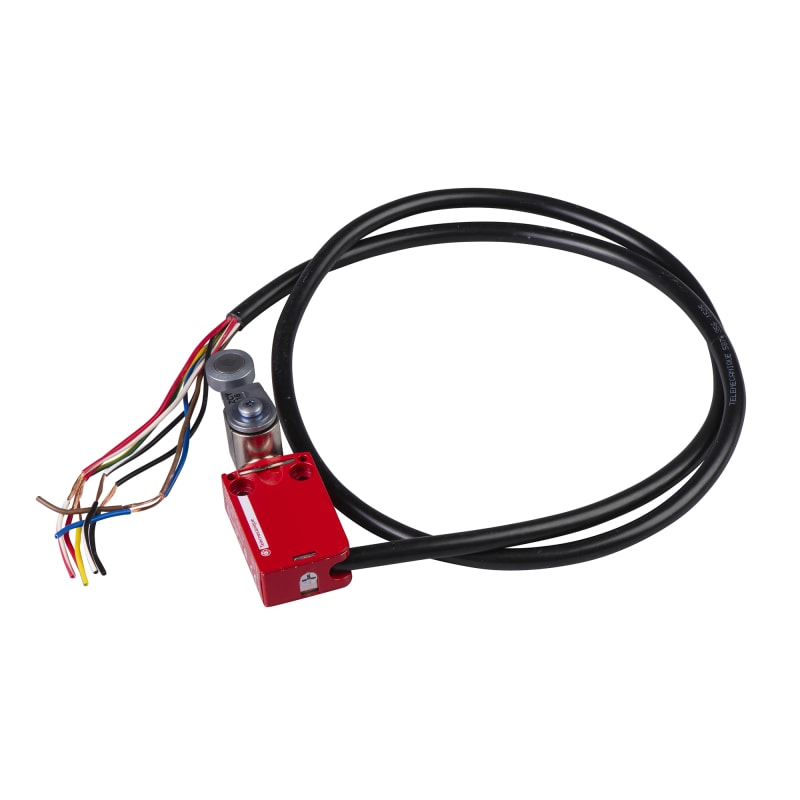

Telemecanique XCSM4116L2 safety limit switch with positive opening contacts, 2 NC + 2 NO contacts.
Technical Specifications
- Manufacturer part number (MPN)
- XCSM4116L2
- EAN / GTIN
- 3666916046371
- HS code
- 8544.42
- Sales unit
- pcs
- Package quantity
- 25 pcs
- Contact configuration
- 2 NC + 2 NO
- Rated operation current Ie at AC-15, 230 V
- 1.5 A
- Rated operation current Ie at DC-13, 230 V
- 0.1 A
- Housing material
- Metal
- Suitable for safety functions
- Yes
- With status indication
- No
- Type of interface for safety communication
- None
- Type of electric connection
- With cable preassembled
- Explosion safety category for gas
- None
- Degree of protection (IP)
- IP68
- Type of interface
- None
- Width sensor
- 30 mm
- With escape release
- No
- Height of sensor
- 94 mm
- Length of sensor
- 34 mm
- Guard locking force
- 0.1 N
- Number of contacts as normally closed contact
- 2
- Number of contacts as normally open contact
- 2
- With auxiliary release
- No
- Type of guard locking
- Quiescent current principle
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 3666916046371
- SAP 1200503082
- Code 82636638
Product Documentation
