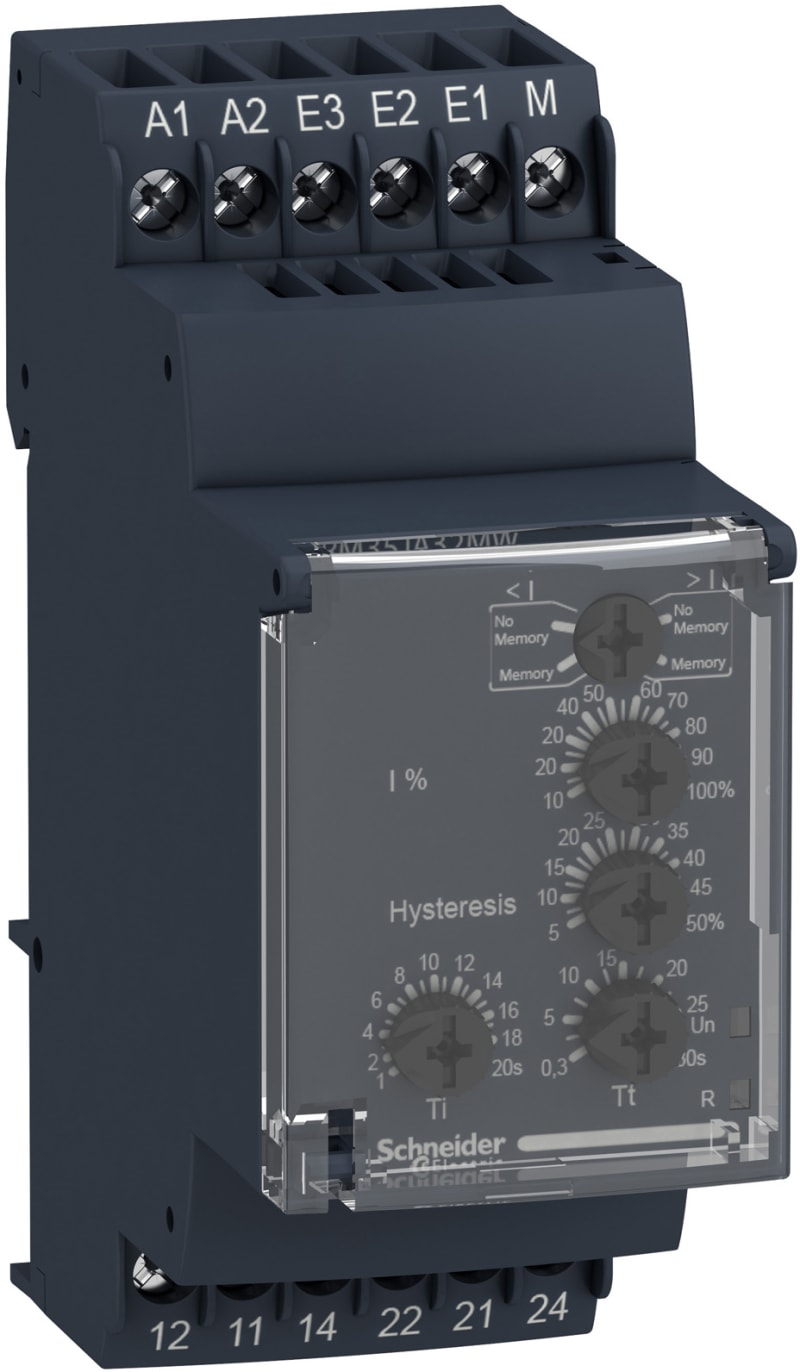

Telemecanique Modular 1-Phase current control relay, 5 A, 2 CO, 2…500 mA,, 24…240 V AC/DC RM35JA31MW

The relay is easy to install and has front-panel adjustment of the voltage threshold and, where applicable, the time delay.

Manufacturer part number (MPN)

RM35JA31MW EAN / GTIN: 3389119405218 Sales unit: pcs Package quantity: 48 pcs Rated current: 5 A Range of product: Harmony Control Relays Relay type: Current control relay Product or component type: Current control relay Relay name: RM35JA Relay monitored parameters: Overcurrent and undercurrent control Time delay type: Adjustable 0.3...30 s, 0 + 10 % Tt- time delay upon fault; Adjustable 1...20 s, 0 + 10 % Ti- inhibition time delay upon startup Switching capacity in VA: 1250 VA minimum switching current: 10 mA at 5 V DC Maximum switching current: 5 A AC Maximum power consumption in VA: 3.5 VA AC Measurement range: 2...500 mA AC/DC E2-M terminals Utilisation category: AC-12 conforming to IEC 60947-5-1; AC-13 conforming to IEC 60947-5-1; AC-14 conforming to IEC 60947-5-1; AC-15 conforming to IEC 60947-5-1; DC-12 conforming to IEC 60947-5-1; DC-13 conforming to IEC 60947-5-1; DC-14 conforming to IEC 60947-5-1 Contacts type and composition: 2 C/O Reset time: 1500 ms time delay Maximum switching voltage: 250 V AC Supply voltage limits: 20.4…264 V AC/DC operating voltage tolerance: - 15 % + 10 % Un Maximum power consumption in W: 0.6 W DC Control circuit frequency: 40...70 Hz +/- 10 % Resistance across terminals: 1 Ohm at E2-M terminals; 5 Ohm at E1-M terminals; 0.2 Ohm at E3-M terminals Output contacts: 2 C/O nominal output current: 5 A Maximum measuring cycle: 30 ms measurement cycle as true rms value Hysteresis: 5…50 % of threshold setting delay at power up: 0.3 s Measurement accuracy: +/- 10 % of the full scale value Repeat accuracy: +/- 0.5 % for input and measurement circuit; +/- 2 % for time delay Measurement error: 0.05 %/°C with temperature variation; 1 by volt over the whole range with voltage variation Polarity: No DC Threshold setting: 10...100 % Marking: CE : EMC 89/336/EEC; CE : 73/23/EEC Overvoltage category: III conforming to IEC 60664-1 Insulation resistance: > 500 MOhm at 500 V DC between supply and relay output conforming to IEC 60255-5; > 500 MOhm at 500 V DC between measurement and relay output conforming to IEC 60664-1; > 1 MOhm at 500 V DC between supply and measurement conforming to IEC 60255-5; > 500 MOhm at 500 V DC between supply and relay output conforming to IEC 60664-1; > 500 MOhm at 500 V DC between measurement and relay output conforming to IEC 60255-5; > 1 MOhm at 500 V DC between supply and measurement conforming to IEC 60664-1 [Ui] rated insulation voltage: 250 V conforming to IEC 60664-1 Insulation: Between supply and measurement Operating position: Any position without derating Connections - terminals: Screw terminals, 1 x 0.5...1 x 4 mm² (20 AWG...11 AWG) solid without cable end; Screw terminals, 2 x 0.5...2 x 2.5 mm² (20 AWG...14 AWG) solid without cable end; Screw terminals, 1 x 0.2...1 x 2.5 mm² (24 AWG...12 AWG) flexible with cable end; Screw terminals, 2 x 0.2...2 x 1.5 mm² (24 AWG...16 AWG) flexible with cable end Tightening torque: 0.6…1 N.m conforming to IEC 60947-1 Housing material: Polycarbonate Local signalling: LED (green) for power ON; LED (yellow) for relay ON Mounting support: 35 mm symmetrical DIN rail conforming to IEC 60715 Electrical durability: 100000 cycles Mechanical durability: 30000000 cycles Operating rate: <= 360 operations/hour full load [Us] rated supply voltage: 24...240 V AC/DC 50/60 Hz, non self-powered Safety reliability data: MTTFd = 296.8 years; B10d = 270000 Contacts material: Cadmium free Width: 35 mm Control type: Without test button Product weight: 0.13 kg Immunity to microbreaks: 50 ms Electromagnetic compatibility: Emission standard for industrial environments conforming to IEC 61000-6-4; Emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3; Immunity for industrial environments conforming to NF EN/IEC 61000-6-2 Standards: IEC 60255-6 Product certifications: GL; CSA; GOST; UL; C-Tick Ambient air temperature for storage: -40…70 °C Ambient air temperature for operation: -20…50 °C Relative humidity: 95 % at 55 °C conforming to IEC 60068-2-30 Vibration resistance: 0.35 mm (f= 5…57.6 Hz) conforming to IEC 60068-2-6; 1 gn (f= 57.6…150 Hz) conforming to IEC 60255-21-1 Shock resistance: 15 gn for 11 ms conforming to IEC 60255-21-1 IP degree of protection: IP20 (terminals) conforming to IEC 60529; IP30 (casing) conforming to IEC 60529 Pollution degree: 3 conforming to IEC 60664-1 Dielectric test voltage: 2 kV, 1 min AC 50 Hz conforming to IEC 60255-5; 2 kV, 1 min AC 50 Hz conforming to IEC 60664-1 Non-dissipating shock wave: 4 kV conforming to IEC 60255-5; 4 kV conforming to IEC 60664-1; 4 kV conforming to IEC 61000-4-5 Number of Units in Package 1: 1 Number of Units in Package 2: 48 Country of origin: ID Warranty (in months): 18 Voltage type (supply voltage): AC/DC Type of electric connection: Screw connection With detachable clamps: No Single-phase under current possible: Yes Three-phase under current possible: No Single-phase overcurrent possible: Yes Three-phase overcurrent possible: No Single-phase hysteresis possible: Yes Three-phase hysteresis possible: No Contains function DC-voltage under current: Yes Contains function DC-voltage overcurrent: Yes Function DC-current hysteresis: Yes Rated control supply voltage AC 50 Hz: 24–240 V Rated control supply voltage AC 60 Hz: 24–240 V Rated control supply voltage DC: 24–240 V Voltage type for actuating: AC/DC Current measuring range: 0.002–0.5 A Min. adjustable delay-on energization time: 1 s Max. permitted delay-on energization time: 20 s Min. adjustable off-delay time: 0.3 s Max. permitted off-delay time: 30 s Number of contacts as change-over contact: 2 External current transformer: No Height: 90 mm Depth: 72 mm

HS Code

8536.49

• EAN 3389119405218
• SAP 1000257663
• Code 8141709
