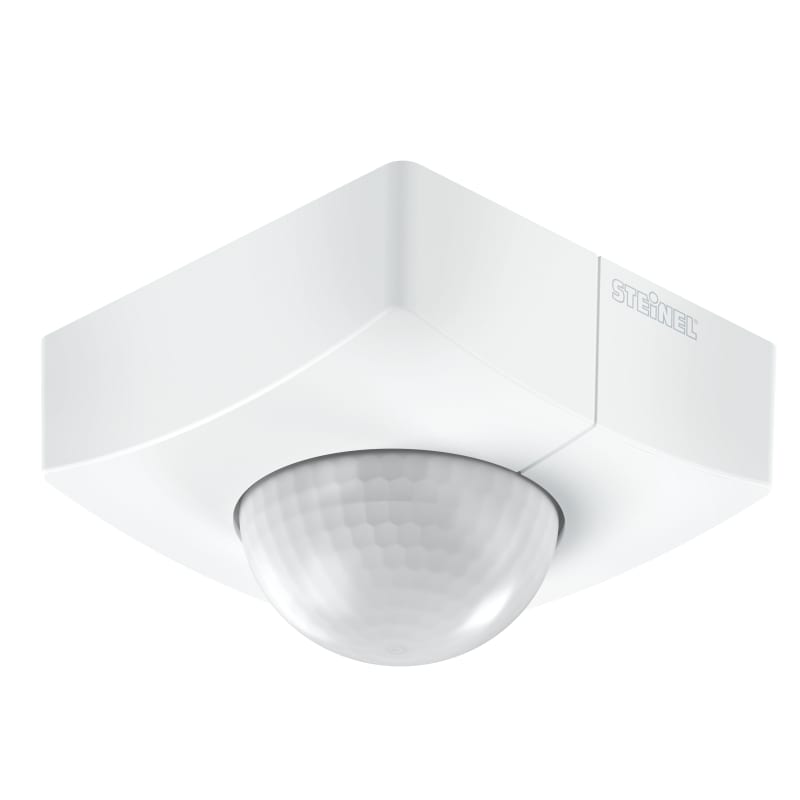

Steinel IS 3360 MX Highbay COM1 Ceiling Motion Sensor 033569 White
Pricing
Request a quote
We reply within 24 hours
Product Description
High-bay 360 degree PIR ceiling occupancy sensor with an 18 m frontal and sideways reach and 14 m diameter floor coverage at the 12 m optimum mounting height. Switches loads up to 2000 W at 240 V AC via a relay, with adjustable luminosity threshold (2-1000 lx) and 5 s to 15 min switching time. Networkable IP54 unit with creep-under protection and staircase-light control function, suited to warehouses, industrial halls and gymnasia.
Technical Specifications
- Manufacturer part number (MPN)
- 033569
- EAN / GTIN
- 4007841033569
- HS code
- 8536.90
- Sales unit
- pcs
- Nominal voltage
- 240 V
- Mounting method
- Surface mounted
- Colour
- White
- Width
- 95 mm
- Model
- Movement sensor
- Halogen free
- Yes
- Height
- 65 mm
- Depth
- 65 mm
- Creep-under protection
- Yes
- Voltage type
- AC
- Switch-off delay
- 300 s
- Frequency
- 50–60 Hz
- With remote control
- No
- Diameter
- 95 mm
- Suitable for wall mounting
- No
- Staircase light controller
- Yes
- Bridging switch
- Yes
- Suitable for wireless transmission
- No
- Material quality
- Thermoplastic
- Max. reach frontally
- 18 m
- Max. reach sideways
- 18 m
- Max. switching power
- 2000 W
- Max. starting current
- 110 A
- Material
- Plastic
- Response value sensitivity adjustable
- No
- Dim function with dimmer basic element
- No
- Response value luminosity
- 2–1000 lx
- Suitable for C-load
- Yes
- Diameter reach on floor
- 14 m
- Remote operation
- Yes
- HVAC-control
- No
- Constant light control
- No
- Substation input
- No
- RAL-number (similar)
- 9003
- With signal unit
- Yes
- Teach-function for response value luminosity
- Yes
- Networkable
- Yes
- Forced switch off
- Yes
- Scan angle
- 360 °
- Impact strength
- IK00
- With connection cable
- Yes
- Degree of protection (IP)
- IP54
- With alarm function
- No
- Transparent
- No
- Animal zone
- No
- Surface finishing
- Matt
- Detection angle horizontal
- 360 °
- Min. switch-on time
- 5 s
- Max. duty cycle
- 15 min
- Response value luminosity adjustable
- Yes
- Optimum mounting height
- 12 m
- Number of switching zones
- 1416
- With DALI interface
- No
- IFTTT support available
- No
- Forced switch on
- Yes
- Min. starting current
- 0.01 A
- Min. depth of built-in installation box
- 0 mm
- Max. presence range
- 1018 m²
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Max. switching power LED
- 500 W
- Compatible with Casambi
- No
- Background monitoring
- No
- With acoustic sensor
- No
- Ceiling built-in mounting without installation box
- Yes
- Movement sensor/presence detector technology
- Passive infrared
- Sensor type
- Passive infrared
- Suitable for ceiling mounting
- Yes
- Anti-bacterial treatment
- No
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4007841033569
- SAP 1000801286
- Code 81486944
Product Documentation
