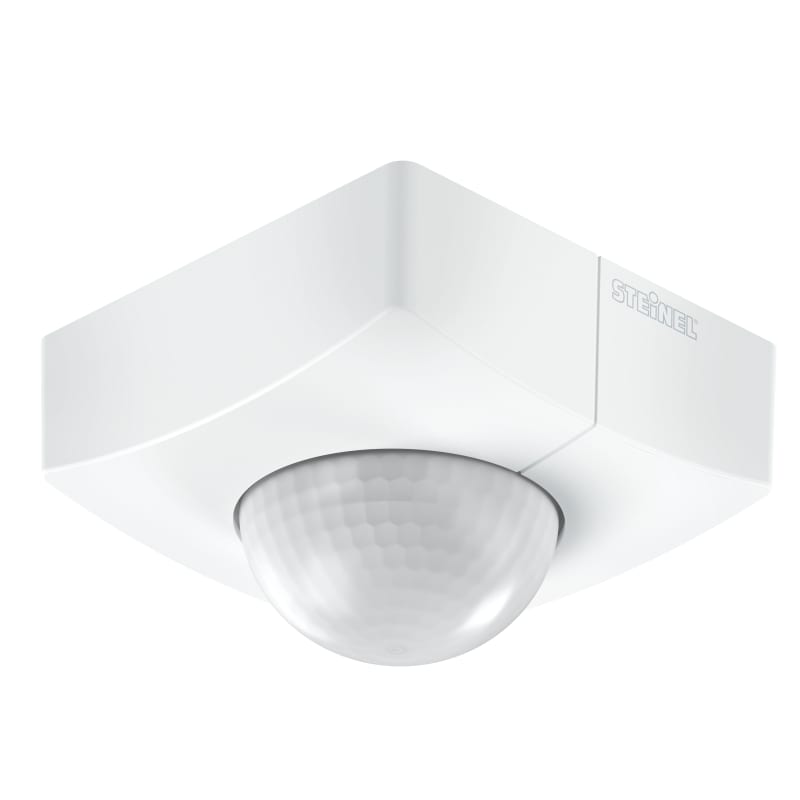

Steinel IS 3360 Square COM1 Ceiling Motion Sensor 360°, White
Pricing
Request a quote
We reply within 24 hours
Product Description
Ceiling-mounted passive infrared presence detector with 360° square detection field, 20 m frontal and lateral reach at mounting height, adjustable creep-under protection. Switches loads up to 2000 W at 240 V via an on/off relay contact and supports staircase-light bridging. Ambient light threshold adjustable 2–1000 lx, switch-off delay up to 300 s, surface-mounted white housing.
Technical Specifications
- Manufacturer part number (MPN)
- 010478
- EAN / GTIN
- 4007841010478
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 27 pcs
- Nominal voltage
- 240 V
- Mounting method
- Surface mounted
- Colour
- White
- Width
- 95 mm
- Model
- Movement sensor
- Halogen free
- Yes
- Height
- 65 mm
- Depth
- 65 mm
- Creep-under protection
- Yes
- Voltage type
- AC
- Switch-off delay
- 300 s
- Frequency
- 50–60 Hz
- With remote control
- No
- Diameter
- 95 mm
- Suitable for wall mounting
- No
- Staircase light controller
- Yes
- Bridging switch
- Yes
- Suitable for wireless transmission
- No
- Material quality
- Thermoplastic
- Max. reach frontally
- 20 m
- Max. reach sideways
- 20 m
- Max. switching power
- 2000 W
- Max. starting current
- 110 A
- Material
- Plastic
- Response value sensitivity adjustable
- No
- Dim function with dimmer basic element
- No
- Response value luminosity
- 2–1000 lx
- Suitable for C-load
- Yes
- Diameter reach on floor
- 8 m
- Remote operation
- Yes
- HVAC-control
- No
- Constant light control
- No
- Substation input
- No
- RAL-number (similar)
- 9003
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4007841010478
- SAP 1000801241
- Code 81484310
