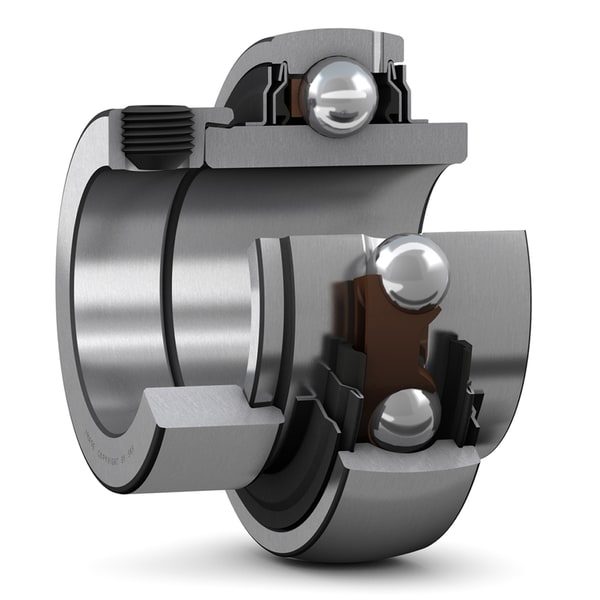

SKF YEL209-111-2F Insert bearing (YAR / YET / YSA / YEL)

SKF YEL209-111-2F insert bearing (yar / yet / ysa / yel). Spherical-outer-ring insert ball bearing suited to drop-in mounting in a pillow-block, flanged, take-up or tapped-base housing. Set-screw (YAR), eccentric locking collar (YET), adapter-sleeve (YSA), or grub-screw double-lock (YEL) shaft attachment per suffix. Sealed for life with grease; regreasable variants add a lubrication nipple to the outer ring.

Type

Insert bearing (YAR / YET / YSA / YEL)

Designation

SKF YEL209-111-2F

HS code

8482.10

Shaft diameter

42.863 mm

Bore diameter

42.863 mm

Outside diameter

85 mm

Width, total

56.3 mm

Width, inner ring

42.8 mm

Width, outer ring

22 mm

Basic dynamic load rating

33.2 kN

Basic static load rating

21.6 kN

Limiting speed

4300 r/min

Note

Limiting speed with shaft tolerance h6

Retaining feature, inner ring

Eccentric collar

Bore type

Cylindrical

Rolling elements

Balls

Outer ring type

Spherical

Inner ring extension

On both sides

Cage

Non-metallic

Rubber seating ring

Without

Material, bearing

Bearing steel

Coating

Without

Sealing

Seal and flinger on both sides

Sealing type

Contact, standard

Lubricant

Grease

Relubrication feature

With

Product net weight

0.836 kg

eClass code

23-05-08-02

UNSPSC code

31171536

Standard

SKF designation convention (see description for governing ISO / DIN)

Material

As declared by SKF designation suffix

Temperature Range

Per SKF product data

HS Code

8482.10

• NTN 2091112
• NSK 2091112
• FAG 2091112
• Koyo 2091112
• ASAHI 2091112
• Equivalent: 2091112 (NTN)
• Equivalent: 2091112 (NSK)
• Equivalent: 2091112 (FAG)
• Equivalent: 2091112 (Koyo)
• Equivalent: 2091112 (ASAHI)
