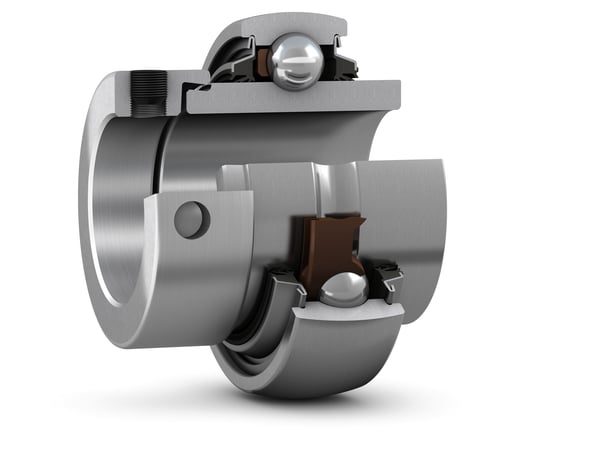

SKF YEL205-014-2DW/AG Insert bearing (YAR / YET / YSA / YEL)

SKF YEL205-014-2DW/AG insert bearing (yar / yet / ysa / yel). Spherical-outer-ring insert ball bearing suited to drop-in mounting in a pillow-block, flanged, take-up or tapped-base housing. Set-screw (YAR), eccentric locking collar (YET), adapter-sleeve (YSA), or grub-screw double-lock (YEL) shaft attachment per suffix. Sealed for life with grease; regreasable variants add a lubrication nipple to the outer ring.

Type

Insert bearing (YAR / YET / YSA / YEL)

Designation

SKF YEL205-014-2DW/AG

HS code

8482.10

Shaft diameter

22.225 mm

Bore diameter

22.225 mm

Outside diameter

52 mm

Width, total

44.4 mm

Width, inner ring

34.9 mm

Width, outer ring

15 mm

Basic dynamic load rating

14 kN

Basic static load rating

7.8 kN

Limiting speed

1500 r/min

Note

Limiting speed with shaft tolerance h6

Retaining feature, inner ring

Eccentric collar

Bore type

Cylindrical

Rolling elements

Balls

Outer ring type

Spherical

Inner ring extension

On both sides

Cage

Non-metallic

Rubber seating ring

Without

Material, bearing

Bearing steel

Coating

Without

Sealing

Seal on both sides

Sealing type

Contact, 5-lip

Lubricant

Grease

Relubrication feature

Without

Product net weight

0.266 kg

eClass code

23-05-08-02

UNSPSC code

31171536

Standard

SKF designation convention (see description for governing ISO / DIN)

Material

As declared by SKF designation suffix

Temperature Range

Per SKF product data

HS Code

8482.10
