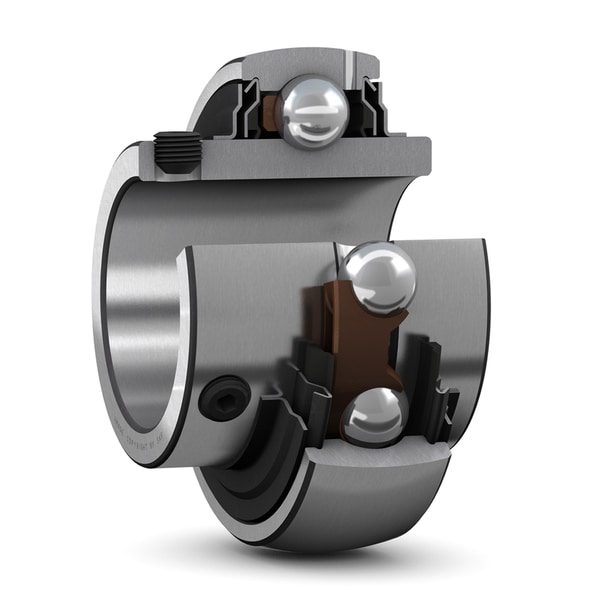

SKF YAR220-2F Insert bearing (YAR / YET / YSA / YEL)

SKF YAR220-2F insert bearing (yar / yet / ysa / yel). Spherical-outer-ring insert ball bearing suited to drop-in mounting in a pillow-block, flanged, take-up or tapped-base housing. Set-screw (YAR), eccentric locking collar (YET), adapter-sleeve (YSA), or grub-screw double-lock (YEL) shaft attachment per suffix. Sealed for life with grease; regreasable variants add a lubrication nipple to the outer ring.

Type

Insert bearing (YAR / YET / YSA / YEL)

Designation

SKF YAR220-2F

Bore d

100 mm

HS code

8482.10

Shaft diameter

100 mm

Bore diameter

100 mm

Outside diameter

180 mm

Width, total

98.4 mm

Width, inner ring

98.4 mm

Width, outer ring

40 mm

Basic dynamic load rating

124 kN

Basic static load rating

93 kN

Limiting speed

1900 r/min

Note

Limiting speed with shaft tolerance h6

Retaining feature, inner ring

Set screws

Bore type

Cylindrical

Rolling elements

Balls

Outer ring type

Spherical

Inner ring extension

On both sides

Cage

Non-metallic

Rubber seating ring

Without

Material, bearing

Bearing steel

Coating

Without

Sealing

Seal and flinger on both sides

Sealing type

Contact, standard

Lubricant

Grease

Relubrication feature

With

Product net weight

5.68 kg

eClass code

23-05-08-02

UNSPSC code

31171536

Standard

SKF designation convention (see description for governing ISO / DIN)

Material

As declared by SKF designation suffix

Temperature Range

Per SKF product data

HS Code

8482.10

• NTN 2202
• NSK 2202
• FAG 2202
• Koyo 2202
• ASAHI 2202
• Equivalent: 2202 (NTN)
• Equivalent: 2202 (NSK)
• Equivalent: 2202 (FAG)
• Equivalent: 2202 (Koyo)
• Equivalent: 2202 (ASAHI)
