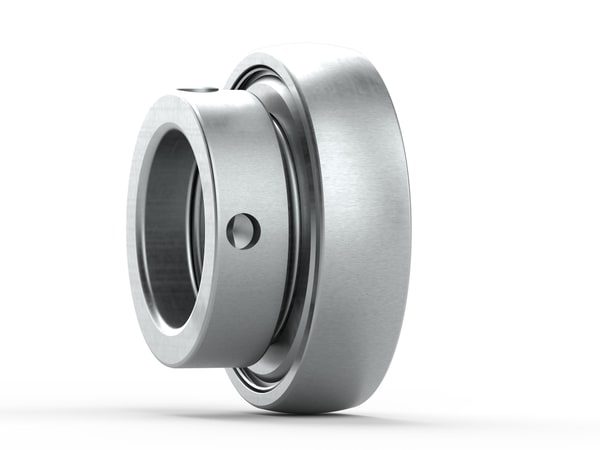

SKF XGGRA106NPPB Insert bearing (YAR / YET / YSA / YEL)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF XGGRA106NPPB insert bearing (yar / yet / ysa / yel). Spherical-outer-ring insert ball bearing suited to drop-in mounting in a pillow-block, flanged, take-up or tapped-base housing. Set-screw (YAR), eccentric locking collar (YET), adapter-sleeve (YSA), or grub-screw double-lock (YEL) shaft attachment per suffix. Sealed for life with grease; regreasable variants add a lubrication nipple to the outer ring.
Technical Specifications
- Type
- Insert bearing (YAR / YET / YSA / YEL)
- Designation
- SKF XGGRA106NPPB
- HS code
- 8482.10
- Shaft diameter
- 34.925 mm
- Bore diameter
- 34.925 mm
- Outside diameter
- 72 mm
- Width, total
- 38.9 mm
- Width, inner ring
- 25.4 mm
- Width, outer ring
- 19 mm
- Basic dynamic load rating
- 25.7 kN
- Basic static load rating
- 15.3 kN
- Limiting speed
- 3000 r/min
- Retaining feature, inner ring
- Eccentric collar
- Bore type
- Cylindrical
- Rolling elements
- Balls
- Outer ring type
- Spherical
- Rubber seating ring
- Without
- Material, bearing
- Bearing steel
- Coating
- Zinc-coated rings
- Sealing
- Seal on both sides
- Sealing type
- Contact, Agri narrow single lip
- Lubricant
- Grease
- Relubrication feature
- With
- Product net weight
- 0.51 kg
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8482.10
Cross References
- NTN 106
- NSK 106
- FAG 106
- Koyo 106
- ASAHI 106
- Equivalent: 106 (NTN)
- Equivalent: 106 (NSK)
- Equivalent: 106 (FAG)
- Equivalent: 106 (Koyo)
- Equivalent: 106 (ASAHI)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF ER879 Bearing housing accessory
SKF
SKF GEM35ESX-2LS Radial spherical plain bearing
SKF
SKF MCW-4500-H9B Hydraulic rod wiper seal
SKF
SKF 7006CD/HCP4ADBC Super-precision angular contact ball bearing
SKF
SKF PL710 Bearing lock nut (keyway type)
SKF
SKF GS125X140.5X6.3-AD1 Hydraulic piston seal
SKF
SKF LOR156V Split pillow-block housing (SNL / SAF / SAW)
SKF
SKF PTB-170X190X16.5-J1S Hydraulic rod seal / buffer seal
Technical guides
- Bearing Unit Finder — by Shaft Diameter: Pillow Block (UCP / SY), Flanged (UCF / UCFL / FY / FYTB), Take-Up (UCT / TU) and Insert Bearings (YAR / YET / UC)
- SKF 81xxx Cylindrical Roller Thrust Bearing — Dimensions, Load Ratings & Interchange (81102 to 81140)
- SKF Deep Groove Ball Bearing Reference — 6000 / 6200 / 6300 / 6400 Series (Dimensions, Load Ratings, Interchange to FAG NSK NTN Timken)
Catalogue entry last verified: 2026-08-13. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XGGRA106NPPB?
- XGGRA106NPPB can be ordered from cballast.com as a SKF catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this SKF product?
- The manufacturer part number is XGGRA106NPPB.
- What is the HS code for XGGRA106NPPB?
- The customs tariff (HS) code for XGGRA106NPPB is 8482.10.
- Who manufactures XGGRA106NPPB?
- XGGRA106NPPB is a SKF product in the Bearings & Power Transmission range.
- Is a datasheet available for XGGRA106NPPB?
- Yes — the XGGRA106NPPB datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XGGRA106NPPB?
- The minimum order quantity is 1.
- Is XGGRA106NPPB available?
- Yes — XGGRA106NPPB is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
