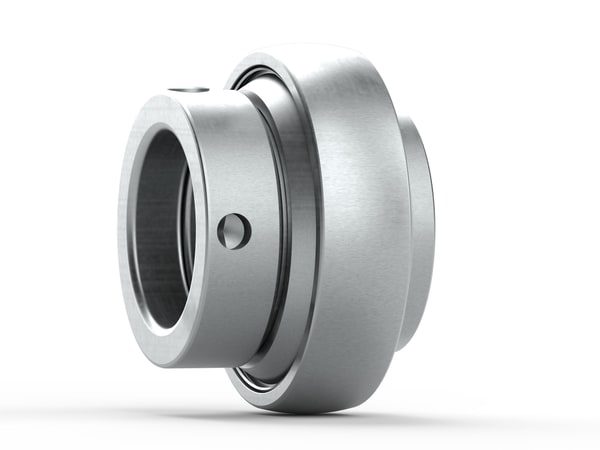

SKF XGG1107KRRB Insert bearing (YAR / YET / YSA / YEL)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF XGG1107KRRB insert bearing (yar / yet / ysa / yel). Spherical-outer-ring insert ball bearing suited to drop-in mounting in a pillow-block, flanged, take-up or tapped-base housing. Set-screw (YAR), eccentric locking collar (YET), adapter-sleeve (YSA), or grub-screw double-lock (YEL) shaft attachment per suffix. Sealed for life with grease; regreasable variants add a lubrication nipple to the outer ring.
Technical Specifications
- Type
- Insert bearing (YAR / YET / YSA / YEL)
- Designation
- SKF XGG1107KRRB
- HS code
- 8482.10
- Shaft diameter
- 36.513 mm
- Bore diameter
- 36.513 mm
- Outside diameter
- 72 mm
- Width, total
- 51.1 mm
- Width, inner ring
- 37.6 mm
- Width, outer ring
- 19 mm
- Basic dynamic load rating
- 25.7 kN
- Basic static load rating
- 15.3 kN
- Limiting speed
- 4300 r/min
- Retaining feature, inner ring
- Eccentric collar
- Bore type
- Cylindrical
- Rolling elements
- Balls
- Outer ring type
- Spherical
- Rubber seating ring
- Without
- Material, bearing
- Bearing steel
- Coating
- Zinc-coated rings
- Sealing
- Seal on both sides
- Sealing type
- Contact, Agri wide single lip
- Lubricant
- Grease
- Relubrication feature
- With
- Product net weight
- 0.56 kg
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8482.10
Cross References
- NTN 1107
- NSK 1107
- FAG 1107
- Koyo 1107
- ASAHI 1107
- Equivalent: 1107 (NTN)
- Equivalent: 1107 (NSK)
- Equivalent: 1107 (FAG)
- Equivalent: 1107 (Koyo)
- Equivalent: 1107 (ASAHI)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
