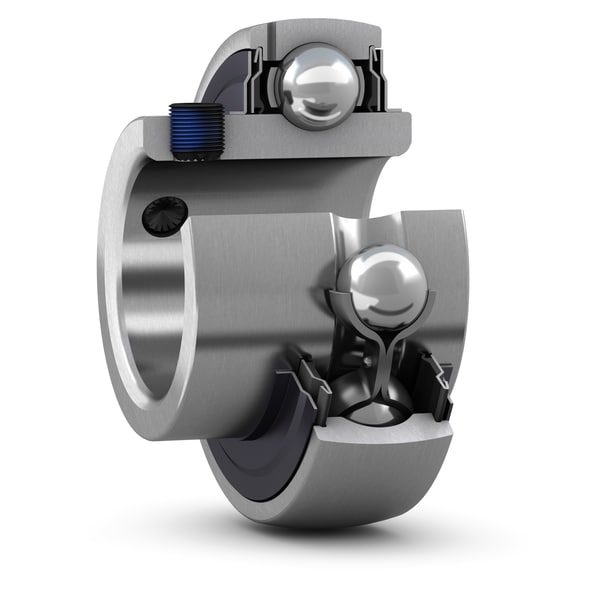

SKF UCX12 Insert bearing (YAR / YET / YSA / YEL)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF UCX12 insert bearing (yar / yet / ysa / yel). Spherical-outer-ring insert ball bearing suited to drop-in mounting in a pillow-block, flanged, take-up or tapped-base housing. Set-screw (YAR), eccentric locking collar (YET), adapter-sleeve (YSA), or grub-screw double-lock (YEL) shaft attachment per suffix. Sealed for life with grease; regreasable variants add a lubrication nipple to the outer ring. Shaft bore diameter 60 mm, encoded by the SKF designation.
Technical Specifications
- Type
- Insert bearing (YAR / YET / YSA / YEL)
- Designation
- SKF UCX12
- HS code
- 8482.10
- Shaft bore
- 60 mm
- Shaft diameter
- 60 mm
- Bore diameter
- 60 mm
- Outside diameter
- 120 mm
- Width, total
- 65.1 mm
- Width, inner ring
- 65.1 mm
- Width, outer ring
- 27 mm
- Basic dynamic load rating
- 57.2 kN
- Basic static load rating
- 40 kN
- Limiting speed
- 2350 r/min
- Note
- Limiting speed with shaft tolerance h6
- Retaining feature, inner ring
- Set screws
- Bore type
- Cylindrical
- Rolling elements
- Balls
- Outer ring type
- Spherical
- Inner ring extension
- On both sides
- Cage
- Sheet metal
- Rubber seating ring
- Without
- Material, bearing
- Bearing steel
- Coating
- Without
- Sealing
- Seal and flinger on both sides
- Sealing type
- Contact, standard
- Lubricant
- Grease
- Relubrication feature
- With
- Product net weight
- 2 kg
- eClass code
- 23-05-16-02
- UNSPSC code
- 31171536
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8482.10
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF ER149 Bearing housing accessory
SKF
SKF GEH20ESX-2LS Radial spherical plain bearing
SKF
SKF HW-36X44X6-J2G Hydraulic rod wiper seal
SKF
SKF 7005CD/HCP4ADGA Super-precision angular contact ball bearing
SKF
SKF N038 Bearing lock nut (keyway type)
SKF
SKF GH2D-7000-AD1 Hydraulic piston seal
SKF
SKF LER619 Split pillow-block housing (SNL / SAF / SAW)
SKF
SKF PTB-115X130X11-J1S Hydraulic rod seal / buffer seal
Technical guides
- Bearing Unit Finder — by Shaft Diameter: Pillow Block (UCP / SY), Flanged (UCF / UCFL / FY / FYTB), Take-Up (UCT / TU) and Insert Bearings (YAR / YET / UC)
- SKF 81xxx Cylindrical Roller Thrust Bearing — Dimensions, Load Ratings & Interchange (81102 to 81140)
- SKF Deep Groove Ball Bearing Reference — 6000 / 6200 / 6300 / 6400 Series (Dimensions, Load Ratings, Interchange to FAG NSK NTN Timken)
Catalogue entry last verified: 2026-08-13. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy UCX12?
- UCX12 can be ordered from cballast.com as a SKF catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this SKF product?
- The manufacturer part number is UCX12.
- What is the HS code for UCX12?
- The customs tariff (HS) code for UCX12 is 8482.10.
- Who manufactures UCX12?
- UCX12 is a SKF product in the Bearings & Power Transmission range.
- Is a datasheet available for UCX12?
- Yes — the UCX12 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for UCX12?
- The minimum order quantity is 1.
- Is UCX12 available?
- Yes — UCX12 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
