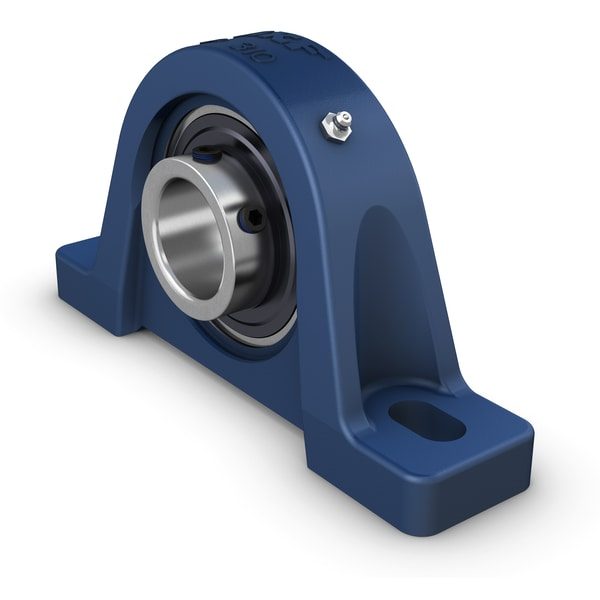

SKF UCP314 — Pillow block ball bearing unit (UCP / UEP / UKP)
SKF · Bearings & Power Transmission · Pillow Block Ball Bearing Units
SKF UCP314 pillow block ball bearing unit (ucp / uep / ukp). Two-bolt pillow-block cast-iron, SG-iron or thermoplastic housing pre-assembled with a spherical-outer-ring insert bearing. Absorbs shaft-to-support misalignment during assembly and in service. Standard shaft attachment is set-screw (UCP); eccentric locking collar (UEP) and adapter-sleeve (UKP) variants available. Dimensioned to ISO 3228 / DIN 626. Designation follows the SKF alphanumeric identification convention where the numeric block encodes the boundary plan and the suffix declares execution options. Shaft bore diameter 155 mm per ISO 3228 boundary plan.
Specifications
- Part number
- UCP314
- HS code
- 8483.20
- Material
- As declared by SKF designation suffix
- Dimensions
- Shaft bore 155 mm
- Temperature range
- Per SKF product data
- Standard
- SKF designation convention
Compatibility
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Also known as — OEM cross-references & superseded numbers
- NTN 314
- NSK 314
- FAG 314
- Koyo 314
- ASAHI 314
- Competitor equivalent: 314 (NTN)
- Competitor equivalent: 314 (NSK)
- Competitor equivalent: 314 (FAG)
- Competitor equivalent: 314 (Koyo)
- Competitor equivalent: 314 (ASAHI)
