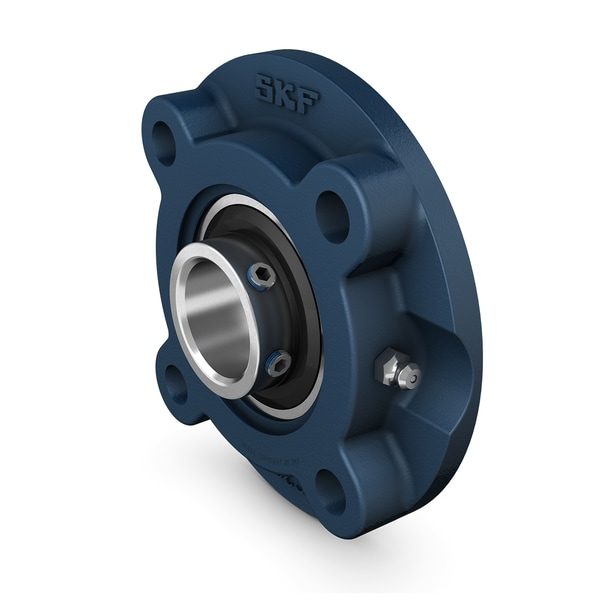

SKF UCFC214 Flanged ball bearing unit (UCF / UCFC / UCFL)

SKF UCFC214 flanged ball bearing unit (ucf / ucfc / ucfl). Square four-bolt (UCF), round three-bolt (UCFC) or oval two-bolt (UCFL) flanged housing pre-assembled with a spherical-outer-ring insert bearing. Absorbs shaft-to-housing misalignment on assembly. Set-screw shaft attachment on standard UC-series insert; eccentric-collar (UEL) or adapter-sleeve (UK) variants available. Dimensioned to ISO 3228 / DIN 626.

Type

Flanged ball bearing unit (UCF / UCFC / UCFL)

Designation

SKF UCFC214

HS code

8483.20

Shaft diameter

70 mm

Housing overall width

54 mm

Width, total

61.4 mm

Pitch diameter of bolt holes of round and triangle flange type housing

177 mm

Bearing width, total

74.6 mm

Attachment bolt diameter

16 mm

Basic dynamic load rating

62.4 kN

Basic static load rating

44 kN

Limiting speed

2250 r/min

Note

Limiting speed with shaft tolerance h6

Housing type

Flanged

Flanged housing type

Round

Number of bolt holes for fasteners

4

Fastening bolt hole type

Plain

Retaining feature, inner ring

Set screws

Bore type

Cylindrical

Rubber seating ring

Without

Material, housing

Cast iron

Material, bearing

Bearing steel

Coating

Without

Sealing, bearing

Seal and flinger on both sides

Sealing type

Contact, standard

Sealing, unit

Optional end cover

Lubricant

Grease

Relubrication hole

With

Grease fitting

With

Product net weight

6.75 kg

eClass code

23-05-16-02

UNSPSC code

31171536

Standard

SKF designation convention

Material

As declared by SKF designation suffix

Temperature Range

Per SKF product data

HS Code

8483.20

• NTN 214
• NSK 214
• FAG 214
• Koyo 214
• ASAHI 214
• Equivalent: 214 (NTN)
• Equivalent: 214 (NSK)
• Equivalent: 214 (FAG)
• Equivalent: 214 (Koyo)
• Equivalent: 214 (ASAHI)
