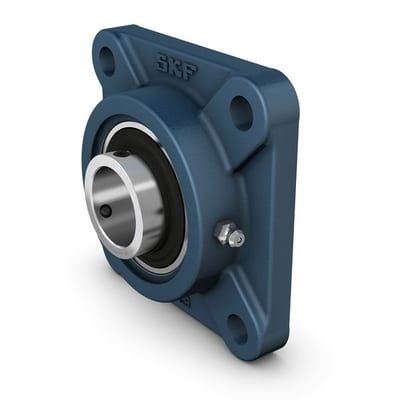

SKF UCF207-23 Flanged ball bearing unit (UCF / UCFC / UCFL)

SKF UCF207-23 flanged ball bearing unit (ucf / ucfc / ucfl). Square four-bolt (UCF), round three-bolt (UCFC) or oval two-bolt (UCFL) flanged housing pre-assembled with a spherical-outer-ring insert bearing. Absorbs shaft-to-housing misalignment on assembly. Set-screw shaft attachment on standard UC-series insert; eccentric-collar (UEL) or adapter-sleeve (UK) variants available. Dimensioned to ISO 3228 / DIN 626. Shaft bore diameter 36.51 mm (1 7/16 in), encoded by the SKF designation.

Type

Flanged ball bearing unit (UCF / UCFC / UCFL)

Designation

SKF UCF207-23

HS code

8483.20

Shaft bore

36.51 mm (1 7/16 in)

Shaft diameter

36.512 mm

Housing overall width

32 mm

Width, total

44.4 mm

Centre distance between bolt holes

92 mm

Bearing width, total

42.9 mm

Attachment bolt diameter

12.7 mm

Basic dynamic load rating

25.5 kN

Basic static load rating

15.3 kN

Limiting speed

4300 r/min

Note

Limiting speed with shaft tolerance h6

Housing type

Flanged

Flanged housing type

Square

Number of bolt holes for fasteners

4

Fastening bolt hole type

Plain

Retaining feature, inner ring

Set screws

Bore type

Cylindrical

Rubber seating ring

Without

Material, housing

Cast iron

Material, bearing

Bearing steel

Coating

Without

Sealing, bearing

Seal and flinger on both sides

Sealing type

Contact, standard

Sealing, unit

Optional end cover

Lubricant

Grease

Relubrication hole

With

Grease fitting

With

Product net weight

1.22 kg

eClass code

23-05-16-02

UNSPSC code

31171536

Standard

SKF designation convention

Material

As declared by SKF designation suffix

Temperature Range

Per SKF product data

HS Code

8483.20

• NTN 20723
• NSK 20723
• FAG 20723
• Koyo 20723
• ASAHI 20723
• Equivalent: 20723 (NTN)
• Equivalent: 20723 (NSK)
• Equivalent: 20723 (FAG)
• Equivalent: 20723 (Koyo)
• Equivalent: 20723 (ASAHI)
