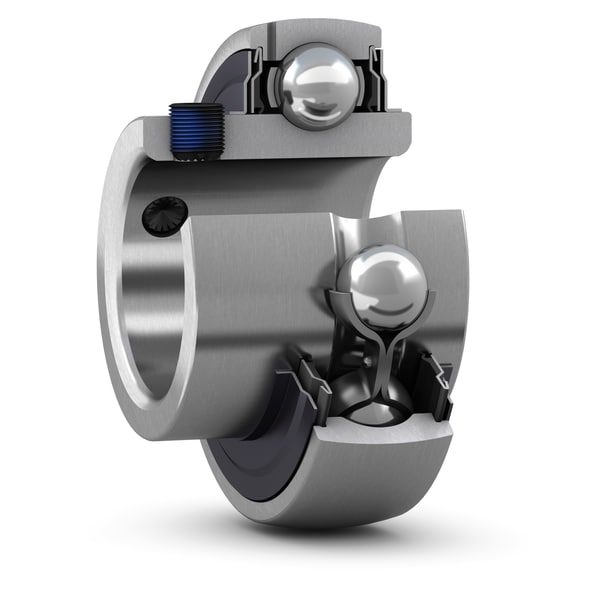

SKF UC317 Insert bearing (YAR / YET / YSA / YEL)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF UC317 insert bearing (yar / yet / ysa / yel). Spherical-outer-ring insert ball bearing suited to drop-in mounting in a pillow-block, flanged, take-up or tapped-base housing. Set-screw (YAR), eccentric locking collar (YET), adapter-sleeve (YSA), or grub-screw double-lock (YEL) shaft attachment per suffix. Sealed for life with grease; regreasable variants add a lubrication nipple to the outer ring. Shaft bore diameter 85 mm, encoded by the SKF designation.
Technical Specifications
- Type
- Insert bearing (YAR / YET / YSA / YEL)
- Designation
- SKF UC317
- HS code
- 8482.10
- Shaft bore
- 85 mm
- Shaft diameter
- 85 mm
- Bore diameter
- 85 mm
- Outside diameter
- 180 mm
- Width, total
- 96 mm
- Width, inner ring
- 96 mm
- Width, outer ring
- 46 mm
- Basic dynamic load rating
- 133 kN
- Basic static load rating
- 96.5 kN
- Limiting speed
- 2050 r/min
- Note
- Limiting speed with shaft tolerance h6
- Retaining feature, inner ring
- Set screws
- Bore type
- Cylindrical
- Rolling elements
- Balls
- Outer ring type
- Spherical
- Inner ring extension
- On both sides
- Cage
- Sheet metal
- Rubber seating ring
- Without
- Material, bearing
- Bearing steel
- Coating
- Without
- Sealing
- Seal and flinger on both sides
- Sealing type
- Contact, standard
- Lubricant
- Grease
- Relubrication feature
- With
- Product net weight
- 6.65 kg
- eClass code
- 23-05-16-02
- UNSPSC code
- 31171536
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8482.10
Cross References
- NTN 317
- NSK 317
- FAG 317
- Koyo 317
- ASAHI 317
- Equivalent: 317 (NTN)
- Equivalent: 317 (NSK)
- Equivalent: 317 (FAG)
- Equivalent: 317 (Koyo)
- Equivalent: 317 (ASAHI)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
