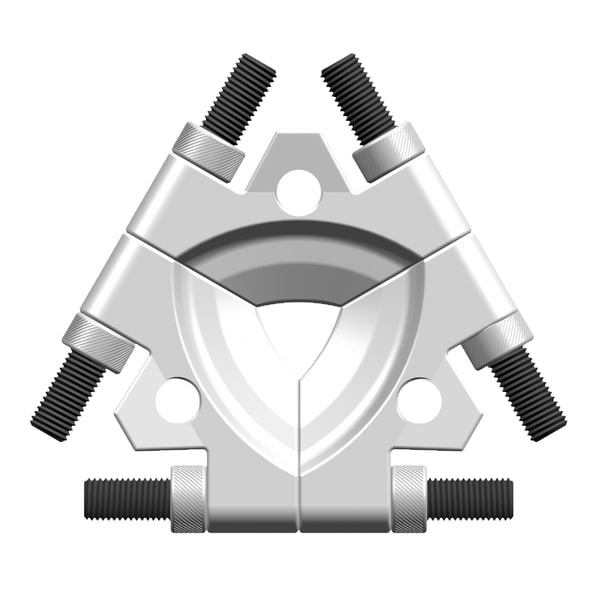

SKF TMMS380 Bearing mounting / dismounting tool
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF TMMS380 bearing mounting / dismounting tool. Precision fitting tool — impact ring set (TMFT), induction heater (TIH), oil-injection dismounting kit (TMOF), hydraulic pull-up nut (HMV), or three-arm mechanical puller (TMMR / TMMD) — used to mount and dismount rolling bearings without damage.
Technical Specifications
- Type
- Bearing mounting / dismounting tool
- Designation
- SKF TMMS380
- HS code
- 8205.59
- Country of Manufacturing (COM code)
- 49 - Taiwan
- Product net weight
- 45.6 kg
- eClass code
- 23-05-19-01
- UNSPSC code
- 27111712
- Recommended applications
- For use with a puller in the dismounting of bearings, gears, pulleys and other industrial ring shaped components in industrial, construction and agricultural applications with an interference fit on the shaft. To asssist a three armed puller where the claws of the puller can't grip the component properly.
- Suitable for workpiece dismounting from a Cylindrical seating (straight shaft)
- Yes
- Pulling force (max)
- 600 kN
- Suitable for bearing dismounting from a Tapered seating (conical shaft)
- Yes
- Suitable for bearing dismounting from a Sleeve (adapter or withdrawal sleeve)
- Yes
- Connecting thread
- M32x2.5
- Suitable for workpiece dismounting from a Blind arrangement (housing with shaft)
- No
- Suitable for workpiece dismounting from a Housing
- No
- Dismounting force generation
- by pullerarms
- Section plates provided with threaded pullinghole
- Yes
- Material
- Alloy engineering steels, hardened and tempered
- Coating
- Rods: black phosphated;Plates and nuts, Zinc coated
- Colour
- Metallic and black
- Distance threaded pulling holes
- 97 mm
- Plate width
- 138 mm
- Plate height
- 58 mm
- Plate tip width
- 14 mm
- Plate tip height
- 7 mm
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8205.59
Cross References
- Enerpac 380
- Simatec 380
- Bega 380
- Equivalent: 380 (Enerpac)
- Equivalent: 380 (Simatec)
- Equivalent: 380 (Bega)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
