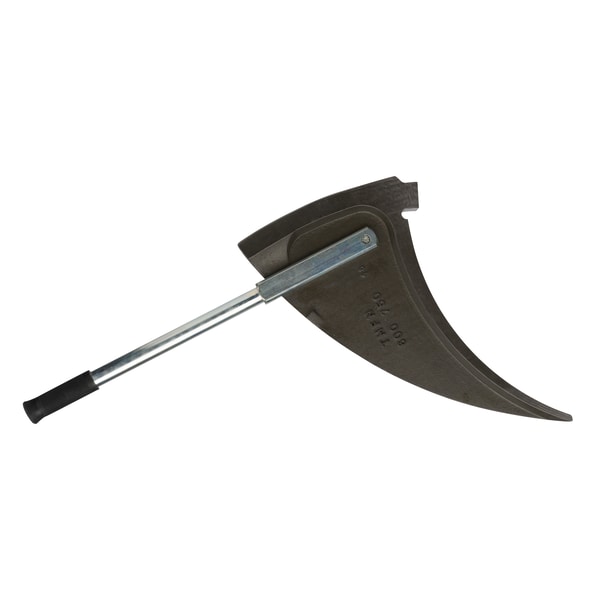

SKF TMFN600-750 Bearing mounting / dismounting tool
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF TMFN600-750 bearing mounting / dismounting tool. Precision fitting tool — impact ring set (TMFT), induction heater (TIH), oil-injection dismounting kit (TMOF), hydraulic pull-up nut (HMV), or three-arm mechanical puller (TMMR / TMMD) — used to mount and dismount rolling bearings without damage.
Technical Specifications
- Type
- Bearing mounting / dismounting tool
- Designation
- SKF TMFN600-750
- HS code
- 8205.59
- Handle length (Lₕ)
- 591 mm
- Nose width (Nₖ)
- 40 mm
- Nose height (Nₕ)
- 19 mm
- Nose Length (f)
- 40 mm
- Thickness (n)
- 40 mm
- Length (L)
- 715 mm
- Working length (l)
- 950 mm
- Height (H)
- 560 mm
- Recommended applications
- To safely tighten or loosen lock nuts after driving up large bearings on tapered seatings when working with rotating components in variety of applications with medium to large bearings and lock nuts.
- Series
- Impact spanner, TMFN
- Allows bearing mounting
- No
- Fits on lock nuts inside SKF split pillow block housings (SNL)
- No
- Suitable SKF Locknut
- HM 30/670, HM 30/710, HM 30/750, HM 30/800, HM 31/600, HM 31/630, HM 31/670, HM 31/710, HM 31/750, HME 30/670, HME 30/710, HME 30/750, HME 30/800, HME 31/600, HME 31/630, HME 31/670, HME 31/710, HME 31/750, N 670, N 710, N 750, N 800
- Handle fixation
- Pivotable
- Material
- Head: spheroidal cast iron;Handle: carbon steel
- Material handle
- Steel handle with rubber grip
- Coating
- Black phosphated head with galvanished handle
- Colour
- Black metallic, silver
- Country of Manufacturing (COM code)
- 31 - Czech Republic
- Product net weight
- 10.8 kg
- eClass code
- 23-05-19-01
- UNSPSC code
- 27111712
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8205.59
Cross References
- Enerpac 600750
- Simatec 600750
- Bega 600750
- Equivalent: 600750 (Enerpac)
- Equivalent: 600750 (Simatec)
- Equivalent: 600750 (Bega)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
