SKF SAKB14F Rod end (spherical plain bearing with threaded eye)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF SAKB14F rod end (spherical plain bearing with threaded eye). Threaded-eye housing with an integrated spherical plain bearing, providing self-alignment on hydraulic-cylinder rod ends, linkage pivots, actuator terminations. Female thread (SI / SIL) or male thread (SA / SAL); left-hand (L suffix) or right-hand thread. Steel-on-steel or steel-on-PTFE-composite raceway. ISO 12240-4 dimensioned.
Technical Specifications
- Type
- Rod end (spherical plain bearing with threaded eye)
- Designation
- SKF SAKB14F
- HS code
- 8483.30
- Bore diameter, bearing inner ring
- 14 mm
- Outside diameter, housing eye
- 37 mm
- Width, bearing inner ring
- 19 mm
- Thread designation
- M 14
- Width, housing eye
- 14.5 mm
- Centre height, housing (from end of shank)
- 60 mm
- Housing length, total
- 80 mm
- Basic dynamic load rating
- 17 kN
- Basic static load rating
- 25.5 kN
- Sliding contact surface combination
- Steel/PTFE FRP
- Material, housing
- Steel
- Material, inner ring
- Bearing steel
- Maintenance
- Maintenance-free
- Attachment feature, rod end shank
- Right-hand male thread
- Sealing
- Without
- Product net weight
- 0.131 kg
- eClass code
- 23-05-01-05
- UNSPSC code
- 31171508
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8483.30
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF SNL3136TURTK7 SNL 30/31/32 split pillow-block housing
SKF
SKF 729145 Hydraulic bearing mounting / dismounting tool
SKF
SKF 154X168X27DOCS60 Metal face seal (Duo-Cone / mud seal)
SKF
SKF 1216/C3 Self-aligning ball bearing (12XX / 13XX / 22XX)
SKF
SKF 31326T164X/DBC100 Matched pair / set of tapered roller bearings
SKF
SKF HJ222EC Single-row cylindrical roller bearing (NU / N / NJ / NUP)
SKF
SKF 81220TN Cylindrical roller thrust bearing (81XXX)
SKF

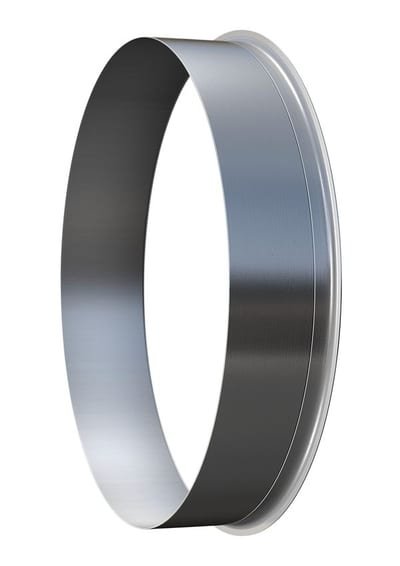

SKF 99162 SKF Speedi-Sleeve shaft wear sleeve
Technical guides
Catalogue entry last verified: 2026-08-13. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy SAKB14F?
- SAKB14F can be ordered from cballast.com as a SKF catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this SKF product?
- The manufacturer part number is SAKB14F.
- What is the HS code for SAKB14F?
- The customs tariff (HS) code for SAKB14F is 8483.30.
- Who manufactures SAKB14F?
- SAKB14F is a SKF product in the Bearings & Power Transmission range.
- Is a datasheet available for SAKB14F?
- Yes — the SAKB14F datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for SAKB14F?
- The minimum order quantity is 1.
- Is SAKB14F available?
- Yes — SAKB14F is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
