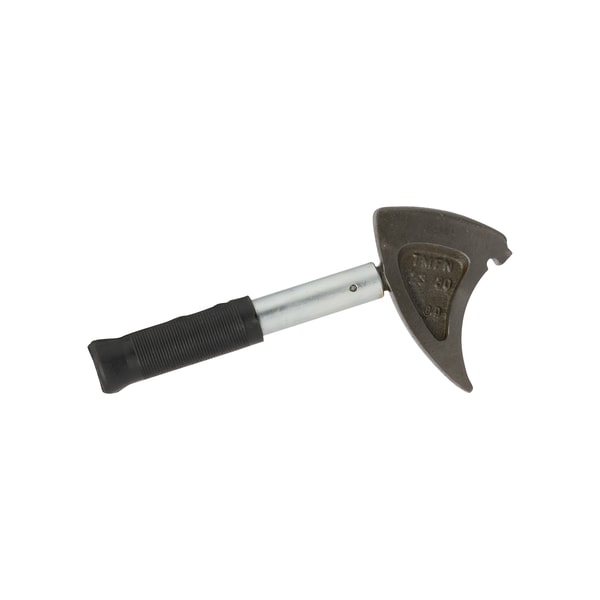

SKF TMFN23-30 Bearing mounting / dismounting tool
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF TMFN23-30 bearing mounting / dismounting tool. Precision fitting tool — impact ring set (TMFT), induction heater (TIH), oil-injection dismounting kit (TMOF), hydraulic pull-up nut (HMV), or three-arm mechanical puller (TMMR / TMMD) — used to mount and dismount rolling bearings without damage.
Technical Specifications
- Type
- Bearing mounting / dismounting tool
- Designation
- SKF TMFN23-30
- HS code
- 8205.59
- Handle length (Lₕ)
- 208 mm
- Nose width (Nₖ)
- 23 mm
- Nose height (Nₕ)
- 4.5 mm
- Nose Length (f)
- 11.5 mm
- Thickness (n)
- 23 mm
- Length (L)
- 319 mm
- Working length (l)
- 300 mm
- Height (H)
- 140 mm
- Recommended applications
- To safely tighten or loosen lock nuts after driving up large bearings on tapered seatings when working with rotating components in variety of applications with medium to large bearings and lock nuts.
- Series
- Impact spanner, TMFN
- Allows bearing mounting
- No
- Fits on lock nuts inside SKF split pillow block housings (SNL)
- No
- Suitable SKF Locknut
- KM 23, KM 24, KM 25, KM 26, KM 27, KM 28, KM 29, KM 30, KM 31, KMFE 24, KMFE 26, KMFE 28, KML 26, KML 28, KML 30, KML 32, KMT 26, KMT 28, KMT 30, AN 22, AN 24, AN 26, AN 28, N 022, N 023, N 024, N 026, N 028, N 030, N 032
- Handle fixation
- Fixed with rubber damper
- Material
- Head: spheroidal cast iron;Handle: carbon steel
- Material handle
- Steel handle with rubber grip
- Coating
- Black phosphated head with galvanished handle
- Colour
- Black metallic, silver
- Country of Manufacturing (COM code)
- 31 - Czech Republic
- Product net weight
- 1.38 kg
- eClass code
- 23-05-19-01
- UNSPSC code
- 27111712
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8205.59
Cross References
- Enerpac 2330
- Simatec 2330
- Bega 2330
- Equivalent: 2330 (Enerpac)
- Equivalent: 2330 (Simatec)
- Equivalent: 2330 (Bega)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
