SKF PHFFX130-48X90 Keyless shaft bushing / locking assembly
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF PHFFX130-48X90 keyless shaft bushing / locking assembly. Frictional shaft-to-hub coupling that transmits torque without a key or splined joint, by radial-elastic clamping between the shaft and hub. Executed as a double-taper collet (self-centring), a single-taper Ringfeder-style assembly, or a stepped-piston hydraulic clamp. Removed and re-installed non-destructively; excellent choice for high-precision or high-torque locations where a keyway would fatigue the shaft.
Technical Specifications
- Type
- Keyless shaft bushing / locking assembly
- Designation
- SKF PHFFX130-48X90
- HS code
- 8483.60
- Bore diameter
- 48 mm
- Outside diameter
- 90 mm
- Width, total
- 93 mm
- Bushing number
- FX130
- Category
- Keyless bushings
- Number of clamp screws
- 6
- Product net weight
- 2.4 kg
- eClass code
- 23-05-19-01
- UNSPSC code
- 31171605
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8483.60
Cross References
- Ringfeder 1304890
- Fenner 1304890
- KTR 1304890
- Tollok 1304890
- Equivalent: 1304890 (Ringfeder)
- Equivalent: 1304890 (Fenner)
- Equivalent: 1304890 (KTR)
- Equivalent: 1304890 (Tollok)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF SAKAC5M Rod end (spherical plain bearing with threaded eye)
SKF
SKF SNL3136 SNL 30/31/32 split pillow-block housing
SKF
SKF 729124-5 Hydraulic bearing mounting / dismounting tool
SKF
SKF 150X175X30DFCR60 Metal face seal (Duo-Cone / mud seal)
SKF

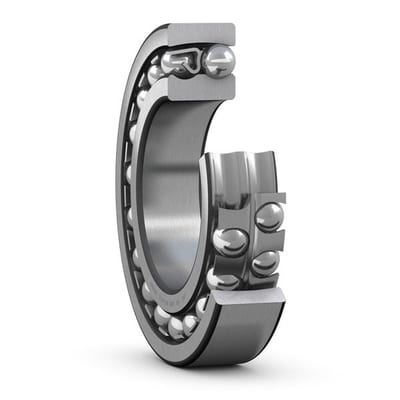

SKF 1215 Self-aligning ball bearing (12XX / 13XX / 22XX)
