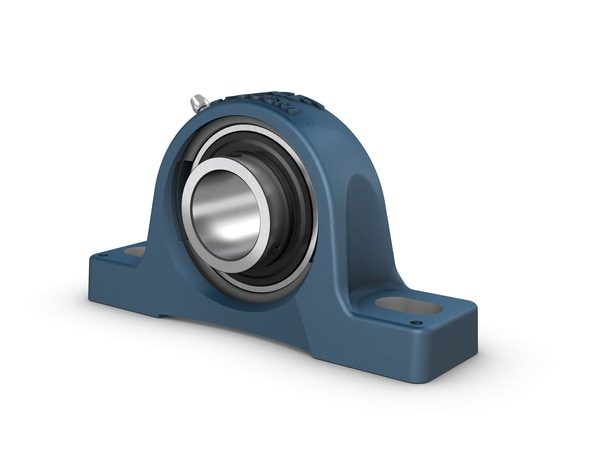

SKF SYJ80TF Pillow block ball bearing unit (UCP / UEP / UKP)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF SYJ80TF pillow block ball bearing unit (ucp / uep / ukp). Two-bolt pillow-block cast-iron, SG-iron or thermoplastic housing pre-assembled with a spherical-outer-ring insert bearing. Absorbs shaft-to-support misalignment during assembly and in service. Standard shaft attachment is set-screw (UCP); eccentric locking collar (UEP) and adapter-sleeve (UKP) variants available. Dimensioned to ISO 3228 / DIN 626.
Technical Specifications
- Type
- Pillow block ball bearing unit (UCP / UEP / UKP)
- Designation
- SKF SYJ80TF
- HS code
- 8483.20
- Shaft diameter
- 80 mm
- Centre height (pillow block)
- 88.9 mm
- Housing overall width
- 78 mm
- Centre distance between bolt holes
- 232 mm
- Bearing width, total
- 77.8 mm
- Attachment bolt diameter
- 20 mm
- Basic dynamic load rating
- 72.8 kN
- Basic static load rating
- 53 kN
- Limiting speed
- 2400 r/min
- Note
- Limiting speed with shaft tolerance h6
- Housing type
- Pillow block, normal base
- Number of bolt holes for fasteners
- 2
- Fastening bolt hole type
- Plain
- Retaining feature, inner ring
- Set screws
- Bore type
- Cylindrical
- Rubber seating ring
- Without
- Material, housing
- Cast iron
- Material, bearing
- Bearing steel
- Coating
- Without
- Sealing, bearing
- Seal and flinger on both sides
- Sealing type
- Contact, standard
- Sealing, unit
- Without
- Lubricant
- Grease
- Relubrication hole
- With
- Grease fitting
- With
- Product net weight
- 8.59 kg
- eClass code
- 23-05-16-02
- UNSPSC code
- 31171536
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8483.20
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
