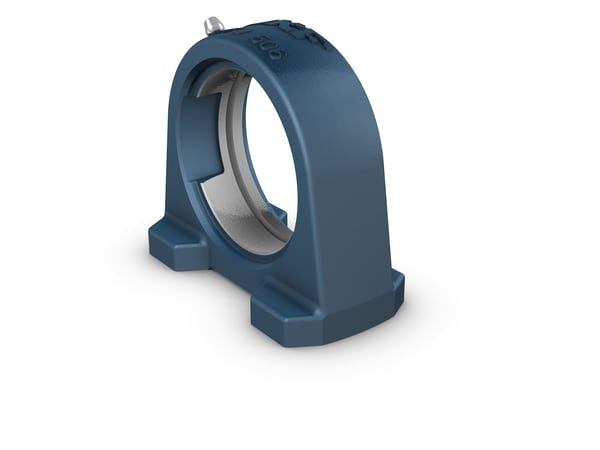

SKF SYFJ509 Pillow block ball bearing unit (UCP / UEP / UKP)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF SYFJ509 pillow block ball bearing unit (ucp / uep / ukp). Two-bolt pillow-block cast-iron, SG-iron or thermoplastic housing pre-assembled with a spherical-outer-ring insert bearing. Absorbs shaft-to-support misalignment during assembly and in service. Standard shaft attachment is set-screw (UCP); eccentric locking collar (UEP) and adapter-sleeve (UKP) variants available. Dimensioned to ISO 3228 / DIN 626.
Technical Specifications
- Type
- Pillow block ball bearing unit (UCP / UEP / UKP)
- Designation
- SKF SYFJ509
- HS code
- 8483.20
- Spherical seating diameter
- 85 mm
- Centre height (pillow block)
- 54.2 mm
- Housing overall width
- 54 mm
- Centre distance between bolt holes
- 90 mm
- Housing type
- Pillow block, short base
- Number of bolt holes for fasteners
- 2
- Fastening bolt hole type
- Threaded
- Material, housing
- Cast iron
- Coating
- Without
- Relubrication hole
- With
- Grease fitting
- With
- Product net weight
- 1.25 kg
- eClass code
- 23-05-16-02
- UNSPSC code
- 31171536
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8483.20
Cross References
- NTN 509
- NSK 509
- FAG 509
- Koyo 509
- ASAHI 509
- Equivalent: 509 (NTN)
- Equivalent: 509 (NSK)
- Equivalent: 509 (FAG)
- Equivalent: 509 (Koyo)
- Equivalent: 509 (ASAHI)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF HM903249/VA983 Single-row tapered roller bearing
SKF
SKF NJ312ECML Single-row cylindrical roller bearing (NU / N / NJ / NUP)
SKF
SKF FY35TR Flanged ball bearing unit (UCF / UCFC / UCFL)
SKF
SKF SYFJ510 Pillow block ball bearing unit (UCP / UEP / UKP)
SKF
SKF HM911245/W/2/CL7C Single-row tapered roller bearing
SKF
SKF NJ312ECP Single-row cylindrical roller bearing (NU / N / NJ / NUP)
SKF
SKF FY35WF Flanged ball bearing unit (UCF / UCFC / UCFL)
SKF
SKF SYFWK1.1/2LTA Pillow block ball bearing unit (UCP / UEP / UKP)
Technical guides
Catalogue entry last verified: 2026-08-13. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy SYFJ509?
- SYFJ509 can be ordered from cballast.com as a SKF catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this SKF product?
- The manufacturer part number is SYFJ509.
- What is the HS code for SYFJ509?
- The customs tariff (HS) code for SYFJ509 is 8483.20.
- Who manufactures SYFJ509?
- SYFJ509 is a SKF product in the Bearings & Power Transmission range.
- Is a datasheet available for SYFJ509?
- Yes — the SYFJ509 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for SYFJ509?
- The minimum order quantity is 1.
- Is SYFJ509 available?
- Yes — SYFJ509 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
