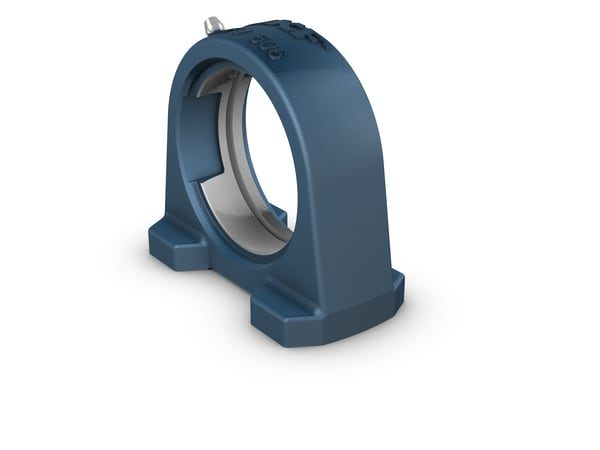

SKF SYFJ510 Pillow block ball bearing unit (UCP / UEP / UKP)

SKF SYFJ510 pillow block ball bearing unit (ucp / uep / ukp). Two-bolt pillow-block cast-iron, SG-iron or thermoplastic housing pre-assembled with a spherical-outer-ring insert bearing. Absorbs shaft-to-support misalignment during assembly and in service. Standard shaft attachment is set-screw (UCP); eccentric locking collar (UEP) and adapter-sleeve (UKP) variants available. Dimensioned to ISO 3228 / DIN 626.

Type

Pillow block ball bearing unit (UCP / UEP / UKP)

Designation

SKF SYFJ510

HS code

8483.20

Spherical seating diameter

90 mm

Centre height (pillow block)

57.2 mm

Housing overall width

60 mm

Centre distance between bolt holes

94 mm

Housing type

Pillow block, short base

Number of bolt holes for fasteners

2

Fastening bolt hole type

Threaded

Material, housing

Cast iron

Coating

Without

Relubrication hole

With

Grease fitting

With

Product net weight

1.56 kg

eClass code

23-05-16-02

UNSPSC code

31171536

Standard

SKF designation convention

Material

As declared by SKF designation suffix

Temperature Range

Per SKF product data

HS Code

8483.20

• NTN 510
• NSK 510
• FAG 510
• Koyo 510
• ASAHI 510
• Equivalent: 510 (NTN)
• Equivalent: 510 (NSK)
• Equivalent: 510 (FAG)
• Equivalent: 510 (Koyo)
• Equivalent: 510 (ASAHI)
