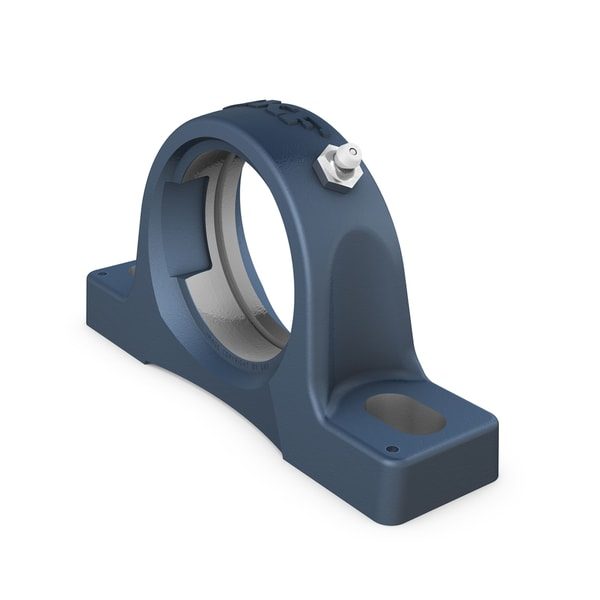

SKF SY513M Pillow block ball bearing unit (UCP / UEP / UKP)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF SY513M pillow block ball bearing unit (ucp / uep / ukp). Two-bolt pillow-block cast-iron, SG-iron or thermoplastic housing pre-assembled with a spherical-outer-ring insert bearing. Absorbs shaft-to-support misalignment during assembly and in service. Standard shaft attachment is set-screw (UCP); eccentric locking collar (UEP) and adapter-sleeve (UKP) variants available. Dimensioned to ISO 3228 / DIN 626.
Technical Specifications
- Type
- Pillow block ball bearing unit (UCP / UEP / UKP)
- Designation
- SKF SY513M
- Bore d
- 65 mm
- HS code
- 8483.20
- Spherical seating diameter
- 120 mm
- Centre height (pillow block)
- 76.2 mm
- Housing overall width
- 65 mm
- Centre distance between bolt holes
- 203 mm
- Housing type
- Pillow block, normal base
- Number of bolt holes for fasteners
- 2
- Fastening bolt hole type
- Plain
- Material, housing
- Cast iron
- Coating
- Without
- Relubrication hole
- With
- Grease fitting
- With
- Product net weight
- 3.83 kg
- eClass code
- 23-05-08-02
- UNSPSC code
- 31171536
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8483.20
Cross References
- NTN 513
- NSK 513
- FAG 513
- Koyo 513
- ASAHI 513
- Equivalent: 513 (NTN)
- Equivalent: 513 (NSK)
- Equivalent: 513 (FAG)
- Equivalent: 513 (Koyo)
- Equivalent: 513 (ASAHI)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
