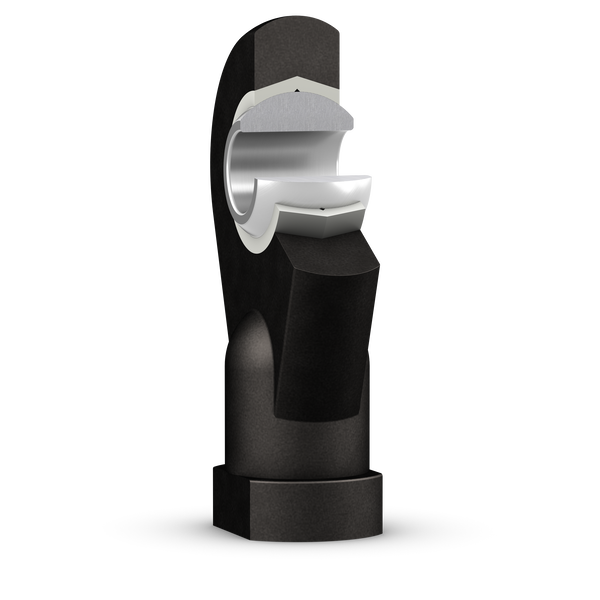

SKF SFIK6F Rod end (spherical plain bearing with threaded eye)

SKF SFIK6F rod end (spherical plain bearing with threaded eye). Threaded-eye housing with an integrated spherical plain bearing, providing self-alignment on hydraulic-cylinder rod ends, linkage pivots, actuator terminations. Female thread (SI / SIL) or male thread (SA / SAL); left-hand (L suffix) or right-hand thread. Steel-on-steel or steel-on-PTFE-composite raceway. ISO 12240-4 dimensioned.

Type

Rod end (spherical plain bearing with threaded eye)

Designation

SKF SFIK6F

HS code

8483.30

Bore diameter, bearing inner ring

6 mm

Outside diameter, housing eye

25 mm

Width, bearing inner ring

9 mm

Thread designation

M 6

Width, housing eye

6.75 mm

Centre height, housing (from end of shank)

30 mm

Housing length, total

42.5 mm

Basic dynamic load rating

1.8 kN

Basic static load rating

2.55 kN

Sliding contact surface combination

Steel/PTFE FRP

Material, housing

Composite

Material, inner ring

Bearing steel

Maintenance

Maintenance-free

Attachment feature, rod end shank

Right-hand female thread

Sealing

Without

Product net weight

0.0116 kg

eClass code

23-05-01-05

UNSPSC code

31171508

Standard

SKF designation convention

Material

As declared by SKF designation suffix

Temperature Range

Per SKF product data

HS Code

8483.30
