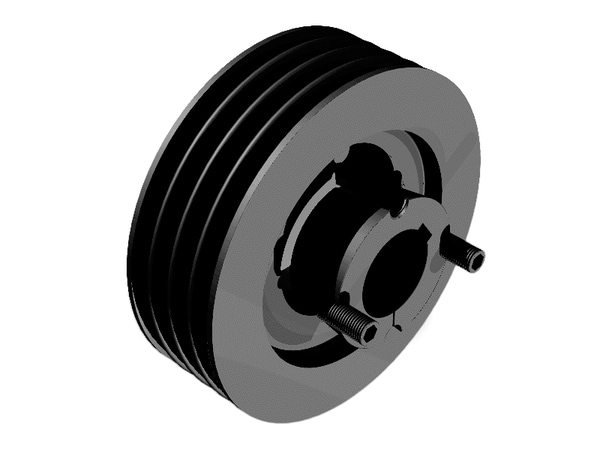

SKF PHP5-C105TB V-belt pulley (sheave)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF PHP5-C105TB v-belt pulley (sheave). Cast-iron or steel V-belt pulley bored for taper-lock bushing (QD or Taper), with grooves cut to the classical or narrow-section V-belt profile in one, two, three, four or six-groove execution. Manufactured to ISO 4183 / RMA IP-20 / IP-22. Bore is set per the fitted taper bushing designation; pilot-bore variants require final machining before use.
Technical Specifications
- Type
- V-belt pulley (sheave)
- Designation
- SKF PHP5-C105TB
- HS code
- 8483.50
- Pitch diameter
- 266.7 mm
- Outside diameter
- 276.86 mm
- Width over grooves
- 136.53 mm
- Length through bore
- 44.45 mm
- Category
- V-belt pulleys
- Section
- C
- Mounting arrangement
- Taper bush
- Bushing number
- 2517
- Material
- Cast Iron
- Number of grooves
- 5
- Product net weight
- 18.8 kg
- eClass code
- 23-17-02-08
- UNSPSC code
- 24101613
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8483.50
Cross References
- Martin Sprocket 5105
- Browning 5105
- Optibelt 5105
- Equivalent: 5105 (Martin Sprocket)
- Equivalent: 5105 (Browning)
- Equivalent: 5105 (Optibelt)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF PHS16B-1BH11 Metric roller-chain sprocket (ISO / DIN 8187)
SKF
SKF PHS80-1TBH13 ANSI roller-chain sprocket (ISO / DIN 8188)
SKF
SKF 7022ACD/P4AQBCB Super-precision angular contact ball bearing
SKF
SKF SIL16X24X6.3 Hydraulic rod seal / buffer seal
SKF
SKF size19-163-395A O-ring / back-up ring
STR19-163-395A
SKF
SKF WAT125-5500-1750-E8D Hydraulic guide ring / wear ring / bearing strip
SKF
SKF PHG2328-8M-30 Timing belt (synchronous drive belt)
SKF
SKF PHGBX90EP V-belt (wedge belt)
Technical guides
- V-Belt Pulley Finder — SPZ, SPA, SPB, SPC, Z/A/B/C, 3V/5V/8V by Number of Grooves and Pitch Diameter (Taper Bush and QD, SKF PHP)
- SKF 81xxx Cylindrical Roller Thrust Bearing — Dimensions, Load Ratings & Interchange (81102 to 81140)
- SKF Deep Groove Ball Bearing Reference — 6000 / 6200 / 6300 / 6400 Series (Dimensions, Load Ratings, Interchange to FAG NSK NTN Timken)
Catalogue entry last verified: 2026-08-13. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy PHP5-C105TB?
- PHP5-C105TB can be ordered from cballast.com as a SKF catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this SKF product?
- The manufacturer part number is PHP5-C105TB.
- What is the HS code for PHP5-C105TB?
- The customs tariff (HS) code for PHP5-C105TB is 8483.50.
- Who manufactures PHP5-C105TB?
- PHP5-C105TB is a SKF product in the Bearings & Power Transmission range.
- Is a datasheet available for PHP5-C105TB?
- Yes — the PHP5-C105TB datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for PHP5-C105TB?
- The minimum order quantity is 1.
- Is PHP5-C105TB available?
- Yes — PHP5-C105TB is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
