SKF PHP3SPB630TB V-belt pulley (sheave)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF PHP3SPB630TB v-belt pulley (sheave). Cast-iron or steel V-belt pulley bored for taper-lock bushing (QD or Taper), with grooves cut to the classical or narrow-section V-belt profile in one, two, three, four or six-groove execution. Manufactured to ISO 4183 / RMA IP-20 / IP-22. Bore is set per the fitted taper bushing designation; pilot-bore variants require final machining before use.
Technical Specifications
- Type
- V-belt pulley (sheave)
- Designation
- SKF PHP3SPB630TB
- HS code
- 8483.50
- Pitch diameter
- 630 mm
- Outside diameter
- 637 mm
- Bore min
- 35 mm
- Bore max
- 90 mm
- Width over grooves
- 63 mm
- Hub diameter
- 170 mm
- Length through bore
- 89 mm
- Category
- V-belt pulleys
- Pulley type
- 4
- Section
- SPB
- Mounting arrangement
- Taper bush
- Bushing number
- 3535
- Material
- Cast Iron
- Number of grooves
- 3
- Product net weight
- 41 kg
- eClass code
- 23-17-02-08
- UNSPSC code
- 24101613
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8483.50
Cross References
- Martin Sprocket 3630
- Browning 3630
- Optibelt 3630
- Equivalent: 3630 (Martin Sprocket)
- Equivalent: 3630 (Browning)
- Equivalent: 3630 (Optibelt)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF PHP44-14M-170RSB Timing belt pulley (synchronous sprocket)
SKF
SKF PHS10B-1DSA17 Metric roller-chain sprocket (ISO / DIN 8187)
SKF
SKF PHS50-1B29 ANSI roller-chain sprocket (ISO / DIN 8188)
SKF
SKF MVR1-65 V-Ring axial seal
SKF
SKF TSN218S Bearing housing accessory
SKF
SKF 7013CD/P4ADGC Super-precision angular contact ball bearing
SKF

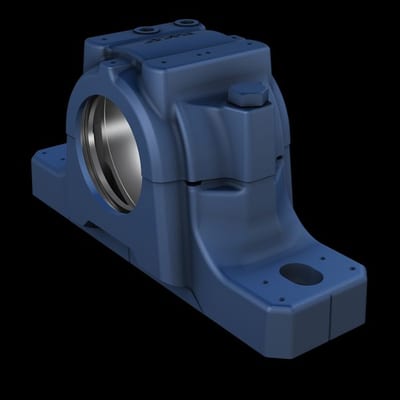

SKF SAFS056KAUB Split pillow-block housing (SNL / SAF / SAW)
