SKF PHP36XL037RSB Timing belt pulley (synchronous sprocket)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF PHP36XL037RSB timing belt pulley (synchronous sprocket). Steel or aluminium synchronous drive pulley cut to match a paired timing-belt tooth profile — MXL, XL, L, H, XH, HTD 3M / 5M / 8M / 14M, Poly Chain GT 8MGT / 14MGT. Flanged or unflanged. Bored for taper bushing or supplied pilot-bore for final machining. Dimensioned to ISO 5296 / DIN 7721.
Technical Specifications
- Type
- Timing belt pulley (synchronous sprocket)
- Designation
- SKF PHP36XL037RSB
- HS code
- 8483.50
- Pitch diameter
- 58.21 mm
- Outside diameter
- 57.71 mm
- Bore min
- 8 mm
- Bore max
- 30 mm
- Width over grooves
- 25.4 mm
- Category
- Timing belt pulleys
- Pulley type
- 1
- Section
- XL
- Mounting arrangement
- Rough stock bore
- Material
- Aluminium
- Number of teeth
- 36
- Product net weight
- 0.13 kg
- eClass code
- 23-17-02-08
- UNSPSC code
- 24101613
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8483.50
Cross References
- Martin Sprocket 36037
- Browning 36037
- Optibelt 36037
- Equivalent: 36037 (Martin Sprocket)
- Equivalent: 36037 (Browning)
- Equivalent: 36037 (Optibelt)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF PHS10B-1AH16 Metric roller-chain sprocket (ISO / DIN 8187)
SKF
SKF PHS41-1B48 ANSI roller-chain sprocket (ISO / DIN 8188)
SKF
SKF 65VAR V-Ring axial seal
SKF
SKF TK72 Bearing housing accessory
SKF
SKF 7012ACDGA/HCP4AL Super-precision angular contact ball bearing
SKF

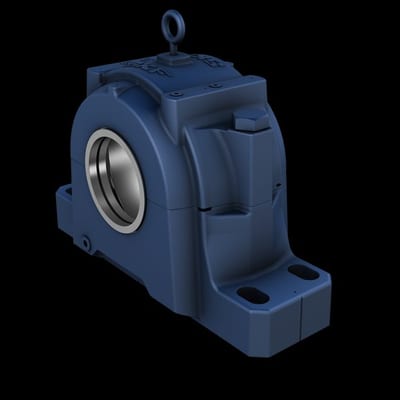

SKF SAF526/VZ729A Split pillow-block housing (SNL / SAF / SAW)
