SKF PHP3-3V530-SDS V-belt pulley (sheave)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF PHP3-3V530-SDS v-belt pulley (sheave). Cast-iron or steel V-belt pulley bored for taper-lock bushing (QD or Taper), with grooves cut to the classical or narrow-section V-belt profile in one, two, three, four or six-groove execution. Manufactured to ISO 4183 / RMA IP-20 / IP-22. Bore is set per the fitted taper bushing designation; pilot-bore variants require final machining before use.
Technical Specifications
- Type
- V-belt pulley (sheave)
- Designation
- SKF PHP3-3V530-SDS
- HS code
- 8483.50
- Pitch diameter
- 133.35 mm
- Outside diameter
- 134.62 mm
- Bore min
- 12.7 mm
- Bore max
- 50.8 mm
- Width over grooves
- 38.1 mm
- Length through bore
- 33.27 mm
- Category
- V-belt pulleys
- Pulley type
- A-1
- Section
- 3V
- Mounting arrangement
- QD bush
- Bushing number
- SDS
- Material
- Cast Iron
- Number of grooves
- 3
- Product net weight
- 2.27 kg
- eClass code
- 23-17-02-08
- UNSPSC code
- 24101613
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8483.50
Cross References
- Martin Sprocket 33530
- Browning 33530
- Optibelt 33530
- Equivalent: 33530 (Martin Sprocket)
- Equivalent: 33530 (Browning)
- Equivalent: 33530 (Optibelt)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF PHP32XL037RSB Timing belt pulley (synchronous sprocket)
SKF
SKF PHS08B-2TB60 Metric roller-chain sprocket (ISO / DIN 8187)
SKF
SKF PHS40-1DSA18 ANSI roller-chain sprocket (ISO / DIN 8188)
SKF
SKF SR-0-28 Bearing housing accessory
SKF

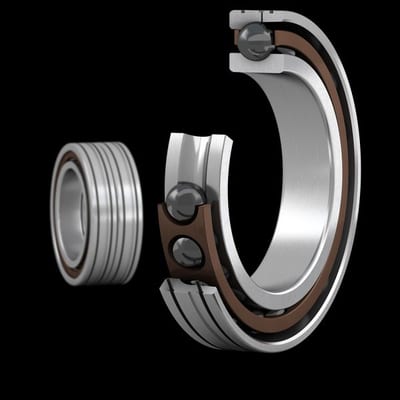

SKF 7010FD/HCP4ALDGA Super-precision angular contact ball bearing
SKF
SKF UNP187-1375-250-H9J Hydraulic piston seal
SKF

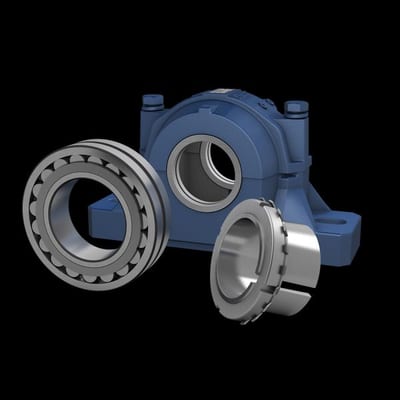

SKF SAF22610 Split pillow-block housing (SNL / SAF / SAW)
SKF
SKF PTB187-1375-375-J1S Hydraulic rod seal / buffer seal
Technical guides
Catalogue entry last verified: 2026-08-13. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy PHP3-3V530-SDS?
- PHP3-3V530-SDS can be ordered from cballast.com as a SKF catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this SKF product?
- The manufacturer part number is PHP3-3V530-SDS.
- What is the HS code for PHP3-3V530-SDS?
- The customs tariff (HS) code for PHP3-3V530-SDS is 8483.50.
- Who manufactures PHP3-3V530-SDS?
- PHP3-3V530-SDS is a SKF product in the Bearings & Power Transmission range.
- Is a datasheet available for PHP3-3V530-SDS?
- Yes — the PHP3-3V530-SDS datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for PHP3-3V530-SDS?
- The minimum order quantity is 1.
- Is PHP3-3V530-SDS available?
- Yes — PHP3-3V530-SDS is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
