SKF PHP2SPB150TB V-belt pulley (sheave)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF PHP2SPB150TB v-belt pulley (sheave). Cast-iron or steel V-belt pulley bored for taper-lock bushing (QD or Taper), with grooves cut to the classical or narrow-section V-belt profile in one, two, three, four or six-groove execution. Manufactured to ISO 4183 / RMA IP-20 / IP-22. Bore is set per the fitted taper bushing designation; pilot-bore variants require final machining before use.
Technical Specifications
- Type
- V-belt pulley (sheave)
- Designation
- SKF PHP2SPB150TB
- HS code
- 8483.50
- Pitch diameter
- 150 mm
- Outside diameter
- 157 mm
- Bore min
- 14 mm
- Bore max
- 50 mm
- Width over grooves
- 44 mm
- Length through bore
- 32 mm
- Category
- V-belt pulleys
- Pulley type
- 2
- Section
- SPB
- Mounting arrangement
- Taper bush
- Bushing number
- 2012
- Material
- Cast Iron
- Number of grooves
- 2
- Product net weight
- 3.19 kg
- eClass code
- 23-17-02-08
- UNSPSC code
- 24101613
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8483.50
Cross References
- Martin Sprocket 2150
- Browning 2150
- Optibelt 2150
- Equivalent: 2150 (Martin Sprocket)
- Equivalent: 2150 (Browning)
- Equivalent: 2150 (Optibelt)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF PHP30-8M-30TB Timing belt pulley (synchronous sprocket)
SKF
SKF PHS08B-1TB76 Metric roller-chain sprocket (ISO / DIN 8187)
SKF
SKF PHS40-1AH47 ANSI roller-chain sprocket (ISO / DIN 8188)
SKF
SKF YSP207SB-2DW/AG Insert bearing (YAR / YET / YSA / YEL)
SKF
SKF FRB5/215 Bearing housing accessory
SKF
SKF 7009CEGA/HCP4AL1 Super-precision angular contact ball bearing
SKF
SKF SA90X80X14 Hydraulic piston seal
SKF

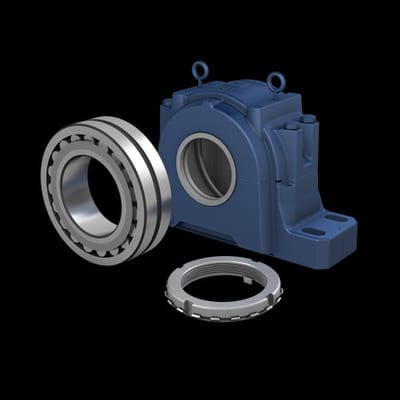

SKF SAF22334 Split pillow-block housing (SNL / SAF / SAW)
Technical guides
- V-Belt Pulley Finder — SPZ, SPA, SPB, SPC, Z/A/B/C, 3V/5V/8V by Number of Grooves and Pitch Diameter (Taper Bush and QD, SKF PHP)
- SKF 81xxx Cylindrical Roller Thrust Bearing — Dimensions, Load Ratings & Interchange (81102 to 81140)
- SKF Deep Groove Ball Bearing Reference — 6000 / 6200 / 6300 / 6400 Series (Dimensions, Load Ratings, Interchange to FAG NSK NTN Timken)
Catalogue entry last verified: 2026-08-13. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy PHP2SPB150TB?
- PHP2SPB150TB can be ordered from cballast.com as a SKF catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this SKF product?
- The manufacturer part number is PHP2SPB150TB.
- What is the HS code for PHP2SPB150TB?
- The customs tariff (HS) code for PHP2SPB150TB is 8483.50.
- Who manufactures PHP2SPB150TB?
- PHP2SPB150TB is a SKF product in the Bearings & Power Transmission range.
- Is a datasheet available for PHP2SPB150TB?
- Yes — the PHP2SPB150TB datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for PHP2SPB150TB?
- The minimum order quantity is 1.
- Is PHP2SPB150TB available?
- Yes — PHP2SPB150TB is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
