SKF PHP2SPA265TB V-belt pulley (sheave)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF PHP2SPA265TB v-belt pulley (sheave). Cast-iron or steel V-belt pulley bored for taper-lock bushing (QD or Taper), with grooves cut to the classical or narrow-section V-belt profile in one, two, three, four or six-groove execution. Manufactured to ISO 4183 / RMA IP-20 / IP-22. Bore is set per the fitted taper bushing designation; pilot-bore variants require final machining before use.
Technical Specifications
- Type
- V-belt pulley (sheave)
- Designation
- SKF PHP2SPA265TB
- HS code
- 8483.50
- Pitch diameter
- 265 mm
- Outside diameter
- 270 mm
- Bore min
- 16 mm
- Bore max
- 60 mm
- Width over grooves
- 35 mm
- Length through bore
- 45 mm
- Category
- V-belt pulleys
- Pulley type
- 4
- Section
- SPA
- Mounting arrangement
- Taper bush
- Bushing number
- 2517
- Material
- Cast Iron
- Number of grooves
- 2
- Product net weight
- 6.2 kg
- eClass code
- 23-17-02-08
- UNSPSC code
- 24101613
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8483.50
Cross References
- Martin Sprocket 2265
- Browning 2265
- Optibelt 2265
- Equivalent: 2265 (Martin Sprocket)
- Equivalent: 2265 (Browning)
- Equivalent: 2265 (Optibelt)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF PHP29-14M-55TB Timing belt pulley (synchronous sprocket)
SKF
SKF PHS08B-1DSTB14 Metric roller-chain sprocket (ISO / DIN 8187)
SKF
SKF PHS40-1AH15 ANSI roller-chain sprocket (ISO / DIN 8188)
SKF

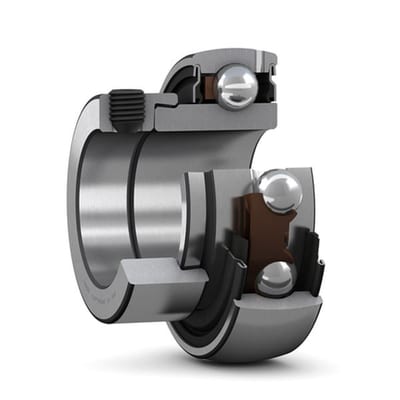

SKF YET207-107 Insert bearing (YAR / YET / YSA / YEL)
SKF
SKF FRB25/500 Bearing housing accessory
SKF
SKF 7009CD/P4ADBB Super-precision angular contact ball bearing
SKF
SKF MPV-140X119X8.1 Hydraulic piston seal
SKF

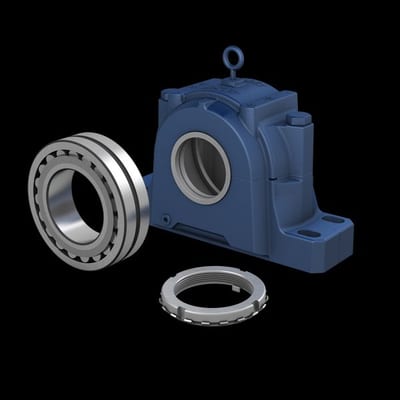

SKF SAF22226 Split pillow-block housing (SNL / SAF / SAW)
