SKF PHP24-8M-30TB Timing belt pulley (synchronous sprocket)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF PHP24-8M-30TB timing belt pulley (synchronous sprocket). Steel or aluminium synchronous drive pulley cut to match a paired timing-belt tooth profile — MXL, XL, L, H, XH, HTD 3M / 5M / 8M / 14M, Poly Chain GT 8MGT / 14MGT. Flanged or unflanged. Bored for taper bushing or supplied pilot-bore for final machining. Dimensioned to ISO 5296 / DIN 7721.
Technical Specifications
- Type
- Timing belt pulley (synchronous sprocket)
- Designation
- SKF PHP24-8M-30TB
- HS code
- 8483.50
- Pitch
- 8 mm
- Belt width
- 30 mm
- Pitch diameter
- 61.12 mm
- Outside diameter
- 59.75 mm
- Bore min
- 9 mm
- Bore max
- 28 mm
- Width over grooves
- 22 mm
- Length through bore
- 22 mm
- Category
- Timing belt pulleys
- Pulley type
- 4F
- Section
- 8M
- Mounting arrangement
- Taper bush
- Bushing number
- 1108
- Material
- Steel
- Number of teeth
- 24
- Product net weight
- 0.373 kg
- eClass code
- 23-17-02-08
- UNSPSC code
- 24101613
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8483.50
Cross References
- Martin Sprocket 24830
- Browning 24830
- Optibelt 24830
- Equivalent: 24830 (Martin Sprocket)
- Equivalent: 24830 (Browning)
- Equivalent: 24830 (Optibelt)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF PHS06B-3B36 Metric roller-chain sprocket (ISO / DIN 8187)
SKF
SKF PHS25-1B10 ANSI roller-chain sprocket (ISO / DIN 8188)
SKF

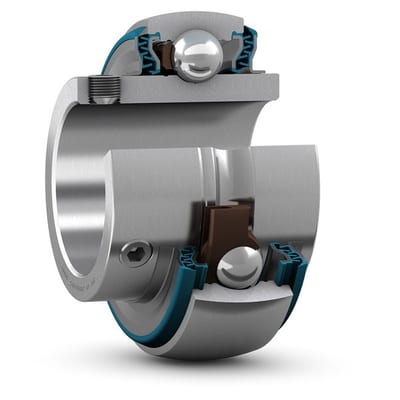

SKF YAR206-103-2LPW/SS Insert bearing (YAR / YET / YSA / YEL)
