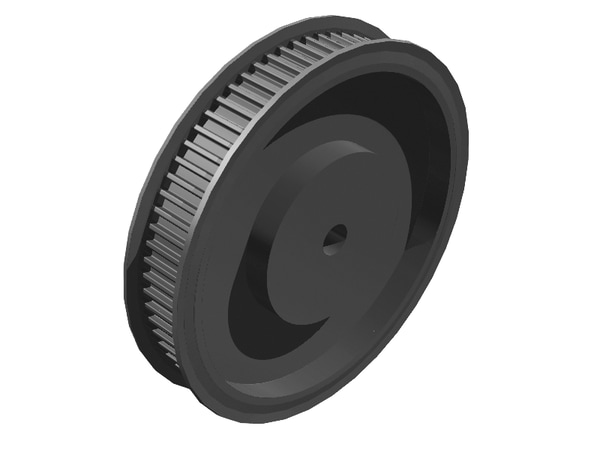

SKF PHP18L075RSB Timing belt pulley (synchronous sprocket)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF PHP18L075RSB timing belt pulley (synchronous sprocket). Steel or aluminium synchronous drive pulley cut to match a paired timing-belt tooth profile — MXL, XL, L, H, XH, HTD 3M / 5M / 8M / 14M, Poly Chain GT 8MGT / 14MGT. Flanged or unflanged. Bored for taper bushing or supplied pilot-bore for final machining. Dimensioned to ISO 5296 / DIN 7721.
Technical Specifications
- Type
- Timing belt pulley (synchronous sprocket)
- Designation
- SKF PHP18L075RSB
- HS code
- 8483.50
- Pitch diameter
- 54.57 mm
- Outside diameter
- 53.81 mm
- Bore min
- 10 mm
- Bore max
- 27 mm
- Width over grooves
- 41 mm
- Hub diameter
- 40 mm
- Category
- Timing belt pulleys
- Pulley type
- 1F
- Section
- L
- Mounting arrangement
- Rough stock bore
- Material
- Steel
- Number of teeth
- 18
- Product net weight
- 0.523 kg
- eClass code
- 23-17-02-08
- UNSPSC code
- 24101613
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8483.50
Cross References
- Martin Sprocket 18075
- Browning 18075
- Optibelt 18075
- Equivalent: 18075 (Martin Sprocket)
- Equivalent: 18075 (Browning)
- Equivalent: 18075 (Optibelt)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF PHS06B-1B85 Metric roller-chain sprocket (ISO / DIN 8187)
SKF
SKF PHS120-1BH12 ANSI roller-chain sprocket (ISO / DIN 8188)
SKF
SKF PER.UC205-B Insert bearing (YAR / YET / YSA / YEL)
SKF
SKF A9508F-40 Bearing housing accessory
SKF
SKF GE80ES-2RS/C2 Radial spherical plain bearing
SKF
SKF GA22X35X5X8 Hydraulic rod wiper seal
SKF
SKF 7004ACDGC/HCP4A Super-precision angular contact ball bearing
SKF

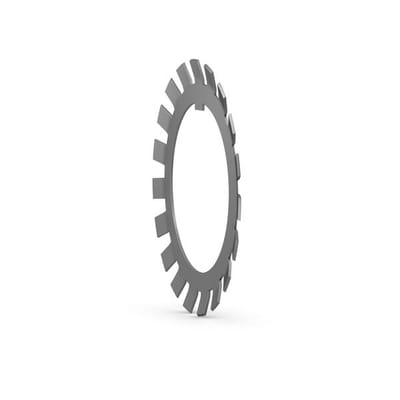

SKF MB38 Bearing lock nut (keyway type)
