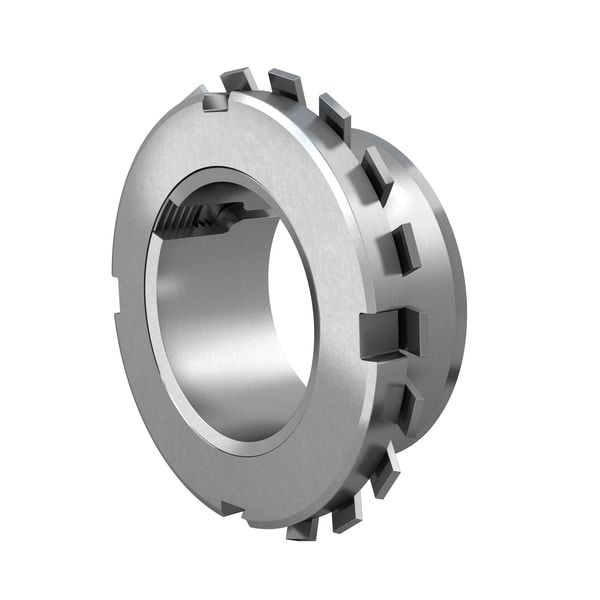

SKF PHFFX80-50X62 Keyless shaft bushing / locking assembly
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF PHFFX80-50X62 keyless shaft bushing / locking assembly. Frictional shaft-to-hub coupling that transmits torque without a key or splined joint, by radial-elastic clamping between the shaft and hub. Executed as a double-taper collet (self-centring), a single-taper Ringfeder-style assembly, or a stepped-piston hydraulic clamp. Removed and re-installed non-destructively; excellent choice for high-precision or high-torque locations where a keyway would fatigue the shaft.
Technical Specifications
- Type
- Keyless shaft bushing / locking assembly
- Designation
- SKF PHFFX80-50X62
- HS code
- 8483.60
- Bore diameter
- 50 mm
- Outside diameter
- 62 mm
- Width, total
- 25.5 mm
- Contact width
- 10 mm
- Bushing number
- FX80
- Category
- Keyless bushings
- Clamp screws nut
- KM11
- Number of clamp screws
- 0
- Product net weight
- 0.3 kg
- eClass code
- 23-05-19-01
- UNSPSC code
- 31171605
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8483.60
Cross References
- Ringfeder 805062
- Fenner 805062
- KTR 805062
- Tollok 805062
- Equivalent: 805062 (Ringfeder)
- Equivalent: 805062 (Fenner)
- Equivalent: 805062 (KTR)
- Equivalent: 805062 (Tollok)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF SIQG25ES Rod end (spherical plain bearing with threaded eye)
SKF
SKF 752X800X56DFCR60 Metal face seal (Duo-Cone / mud seal)
SKF
SKF 2307EM Self-aligning ball bearing (12XX / 13XX / 22XX)
SKF
SKF NJ212ECJ/C3 Single-row cylindrical roller bearing (NU / N / NJ / NUP)
SKF
SKF 99838 SKF Speedi-Sleeve shaft wear sleeve
SKF
SKF C4130V CARB toroidal roller bearing (C xxxx)
SKF

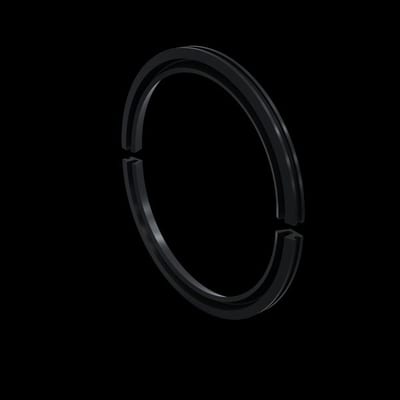

SKF COP.SR40M Cooper split roller bearing
