SKF PHFFX60-95X135 Keyless shaft bushing / locking assembly
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF PHFFX60-95X135 keyless shaft bushing / locking assembly. Frictional shaft-to-hub coupling that transmits torque without a key or splined joint, by radial-elastic clamping between the shaft and hub. Executed as a double-taper collet (self-centring), a single-taper Ringfeder-style assembly, or a stepped-piston hydraulic clamp. Removed and re-installed non-destructively; excellent choice for high-precision or high-torque locations where a keyway would fatigue the shaft.
Technical Specifications
- Type
- Keyless shaft bushing / locking assembly
- Designation
- SKF PHFFX60-95X135
- HS code
- 8483.60
- Bore diameter
- 95 mm
- Outside diameter
- 135 mm
- Width, total
- 88 mm
- Contact width
- 70 mm
- Element width
- 78 mm
- Bushing number
- FX60
- Category
- Keyless bushings
- Number of clamp screws
- 12
- Product net weight
- 5 kg
- eClass code
- 23-05-19-01
- UNSPSC code
- 31171605
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8483.60
Cross References
- Ringfeder 6095135
- Fenner 6095135
- KTR 6095135
- Tollok 6095135
- Equivalent: 6095135 (Ringfeder)
- Equivalent: 6095135 (Fenner)
- Equivalent: 6095135 (KTR)
- Equivalent: 6095135 (Tollok)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF SILKB5F Rod end (spherical plain bearing with threaded eye)
SKF
SKF 667X700X50DOCR60 Metal face seal (Duo-Cone / mud seal)
SKF
SKF 2305M/P6 Self-aligning ball bearing (12XX / 13XX / 22XX)
SKF
SKF T7FC060T80/HN3QDTV004 Matched pair / set of tapered roller bearings
SKF
SKF NJ210ECJ/C3 Single-row cylindrical roller bearing (NU / N / NJ / NUP)
SKF
SKF 99824 SKF Speedi-Sleeve shaft wear sleeve
SKF
SKF C4044V CARB toroidal roller bearing (C xxxx)
SKF

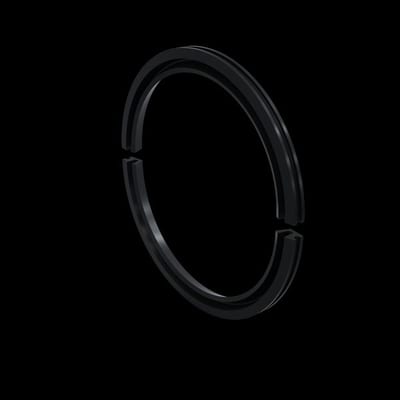

SKF COP.SR110M Cooper split roller bearing
