SKF PHFFX51-28X55 Keyless shaft bushing / locking assembly
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF PHFFX51-28X55 keyless shaft bushing / locking assembly. Frictional shaft-to-hub coupling that transmits torque without a key or splined joint, by radial-elastic clamping between the shaft and hub. Executed as a double-taper collet (self-centring), a single-taper Ringfeder-style assembly, or a stepped-piston hydraulic clamp. Removed and re-installed non-destructively; excellent choice for high-precision or high-torque locations where a keyway would fatigue the shaft.
Technical Specifications
- Type
- Keyless shaft bushing / locking assembly
- Designation
- SKF PHFFX51-28X55
- HS code
- 8483.60
- Bore diameter
- 28 mm
- Outside diameter
- 55 mm
- Width, total
- 34 mm
- Element width
- 17 mm
- Bushing number
- FX51
- Category
- Keyless bushings
- Number of clamp screws
- 6
- Product net weight
- 0.4 kg
- eClass code
- 23-05-19-01
- UNSPSC code
- 31171605
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8483.60
Cross References
- Ringfeder 512855
- Fenner 512855
- KTR 512855
- Tollok 512855
- Equivalent: 512855 (Ringfeder)
- Equivalent: 512855 (Fenner)
- Equivalent: 512855 (KTR)
- Equivalent: 512855 (Tollok)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF

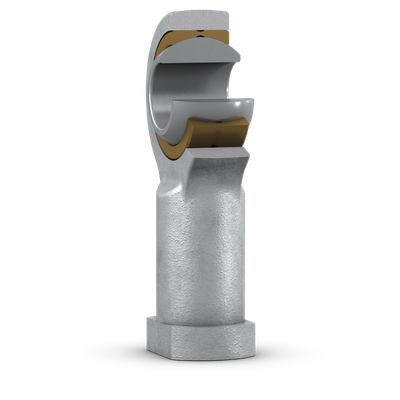

SKF SIKAC5M Rod end (spherical plain bearing with threaded eye)
SKF

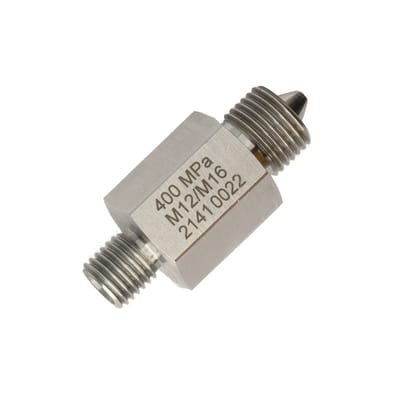

SKF THPAAM12/M16 Hydraulic bearing mounting / dismounting tool
