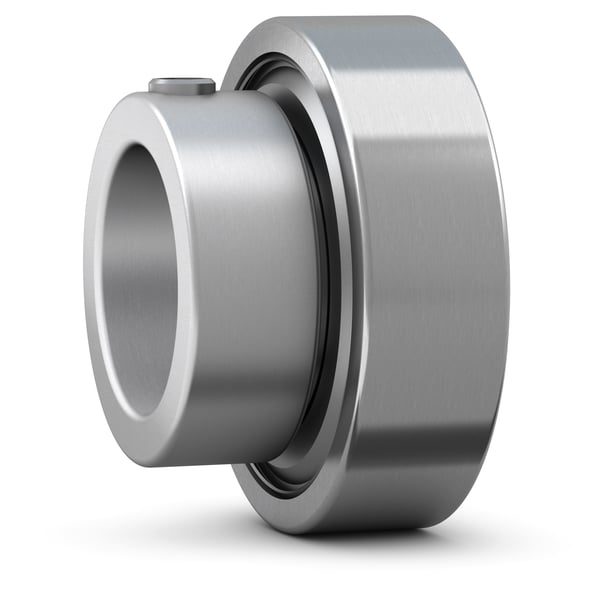

SKF PER.FHR205-16 Insert bearing (YAR / YET / YSA / YEL)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF PER.FHR205-16 insert bearing (yar / yet / ysa / yel). Spherical-outer-ring insert ball bearing suited to drop-in mounting in a pillow-block, flanged, take-up or tapped-base housing. Set-screw (YAR), eccentric locking collar (YET), adapter-sleeve (YSA), or grub-screw double-lock (YEL) shaft attachment per suffix. Sealed for life with grease; regreasable variants add a lubrication nipple to the outer ring.
Technical Specifications
- Type
- Insert bearing (YAR / YET / YSA / YEL)
- Designation
- SKF PER.FHR205-16
- HS code
- 8482.10
- Shaft diameter
- 25.4 mm
- Bore diameter
- 25.4 mm
- Outside diameter
- 52 mm
- Width, total
- 44.3 mm
- Width, inner ring
- 21.5 mm
- Width, outer ring
- 15 mm
- Basic dynamic load rating
- 14 kN
- Basic static load rating
- 7.88 kN
- Retaining feature, inner ring
- Eccentric collar
- Bore type
- Cylindrical
- Rolling elements
- Balls
- Outer ring type
- Cylindrical
- Inner ring extension
- None (standard ring)
- Rubber seating ring
- Without
- Material, bearing
- Bearing steel
- Coating
- Without
- Sealing
- Seal on both sides
- Sealing type
- Contact
- Lubricant
- Grease
- Relubrication feature
- Without
- Product net weight
- 0.183 kg
- eClass code
- 23-05-16-02
- UNSPSC code
- 31171536
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8482.10
Cross References
- NTN 20516
- NSK 20516
- FAG 20516
- Koyo 20516
- ASAHI 20516
- Equivalent: 20516 (NTN)
- Equivalent: 20516 (NSK)
- Equivalent: 20516 (FAG)
- Equivalent: 20516 (Koyo)
- Equivalent: 20516 (ASAHI)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF

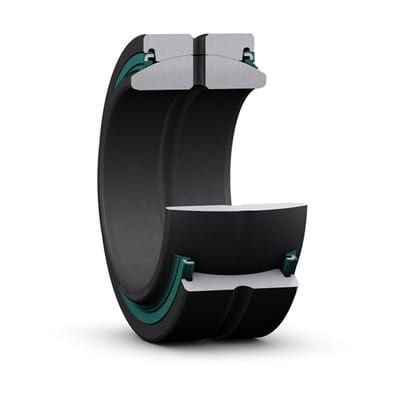

SKF GE220ESX-2LS Radial spherical plain bearing
SKF
SKF DTW-6000-J2G Hydraulic rod wiper seal
SKF
SKF 7002CD/P4ADBC Super-precision angular contact ball bearing
SKF
SKF HML73T Bearing lock nut (keyway type)
SKF

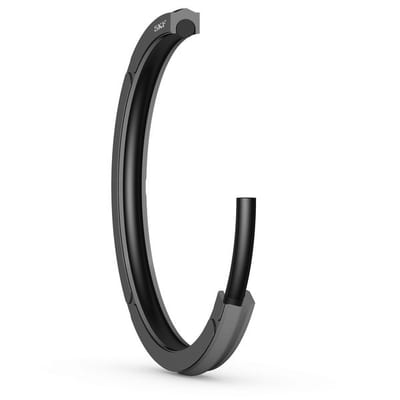

SKF CPV-437-J1S Hydraulic piston seal
SKF

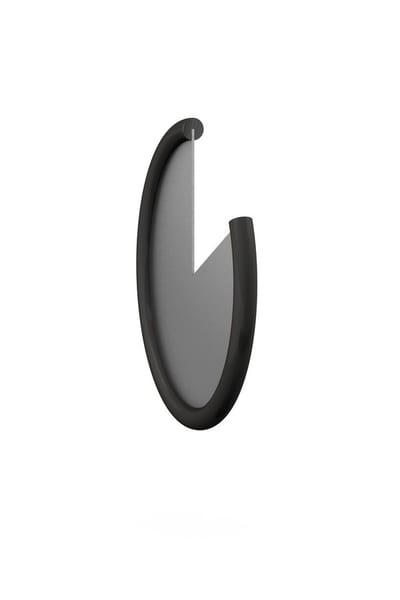

SKF EPR7 Split pillow-block housing (SNL / SAF / SAW)
