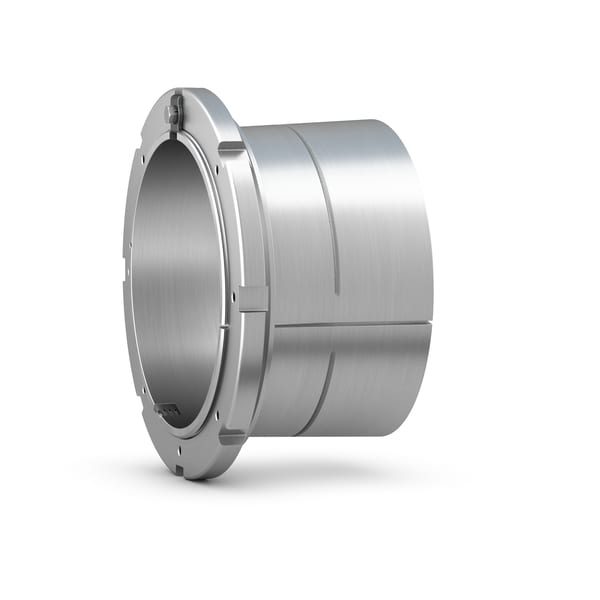

SKF OH3176HE Adapter sleeve
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF OH3176HE adapter sleeve. Tapered sleeve fitting between a straight shaft and a tapered-bore bearing (spherical roller, self-aligning ball, CARB toroidal roller). Combined with a lock nut and locking device, provides tight fit and correct radial internal clearance without shaft shoulders. Standard designation prefix H (metric H2xxx / H3xxx / H30xx / H31xx / H32xx / HE3xx). Dimensioned to ISO 113.
Technical Specifications
- Type
- Adapter sleeve Designation: SKF OH3176HE Bore d: 380 mm HS code: 8483.30 Bore diameter: 360 mm Width: 264 mm Thread designation: Tr 380x5 Taper: 1:12 Holes for oil injection: With Product net weight: 53.7 kg eClass code: 23-11-07-05 UNSPSC code: 31163218
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8483.30
Cross References
- FAG 3176
- NSK 3176
- Timken 3176
- NTN 3176
- Koyo 3176
- Equivalent: 3176 (FAG)
- Equivalent: 3176 (NSK)
- Equivalent: 3176 (Timken)
- Equivalent: 3176 (NTN)
- Equivalent: 3176 (Koyo)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF KDN.K11008XP0 Thin-section ball bearing (Reali-Slim)
SKF

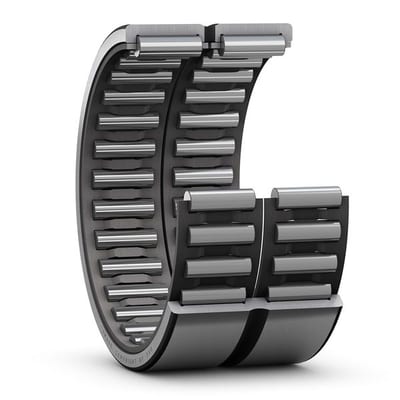

SKF RNA6915 Needle roller bearing (machined rings)
SKF

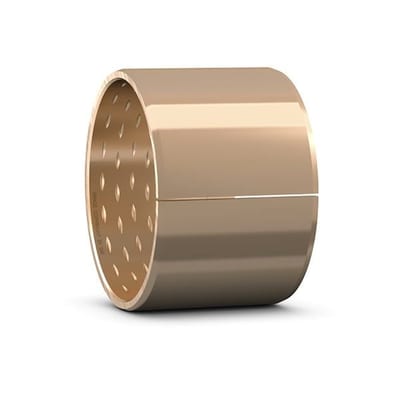

SKF PRM161815 Plain sleeve bushing
